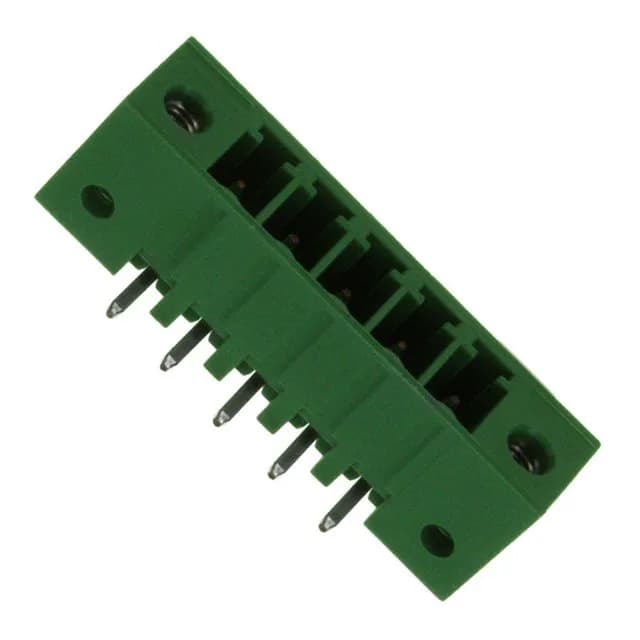

284541-5 - TE Connectivity AMP Connectors
MPN284541-5
Active
$2.2434Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 11 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.285\" (7.25mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.134\" (3.40mm) |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
