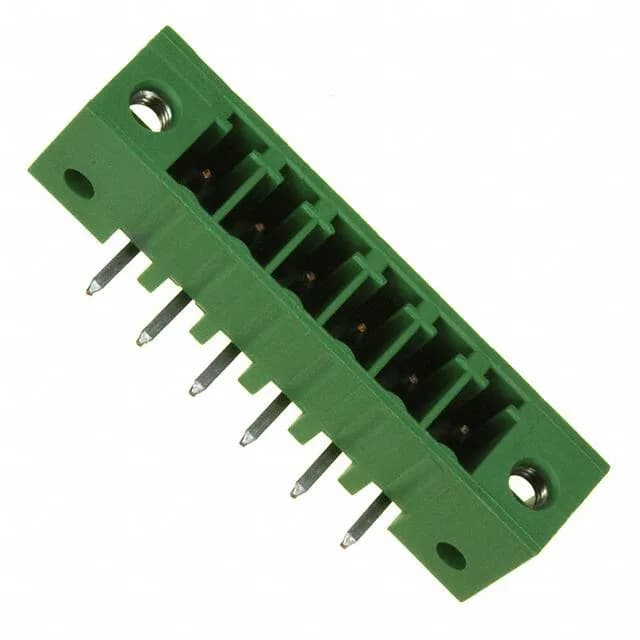

Mating flange and board orientation
The 284541-6: A mating flange on the 4-side shrouded header provides positive alignment with the receptacle; the 90° right-angle orientation places the wire exit parallel to the PCB.
TE Connectivity 284541-6 Header, 6 Pos, 3.81mm, Right Angle
MPN284541-6
Active
TE Connectivity AMP Connectors Buchanan header, order code 284541-6, 6 positions, single level, 0.150" (3.81mm) pitch, 11 A, 300 V, through hole, right angle, solder termination, tin-plated mating contacts.
$0.6100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 11 A |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.285\" (7.25mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.134\" (3.40mm) |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
