6-Position Sealed Receptacle Housing, 4.00 mm Pitch

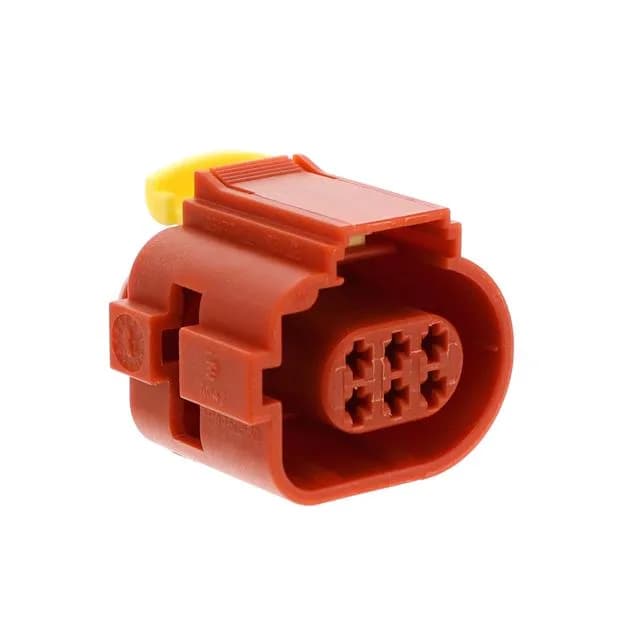

The TE Connectivity 284716-3 is a 6-position, 2-row receptacle housing from the Micro Timer II series, on a 4.00 mm pitch.
Sealed Housing for Wet-Duty Applications
This housing carries a sealed feature designation, which means it is intended for use with mating connectors and wire seals to create a weatherproof junction. In the Micro Timer II family, the seal is typically achieved with a perimeter gasket on the mating face and individual wire seals in the cavity — the housing itself provides the structural envelope for that seal system. This makes the 284716-3 appropriate for harness sections that see splash, washdown, or condensation, such as engine bay sensor connections or exterior lighting circuits.
Contacts and Mating Half
The housing accepts tab-type crimp contacts (male terminals) inserted from the rear.
