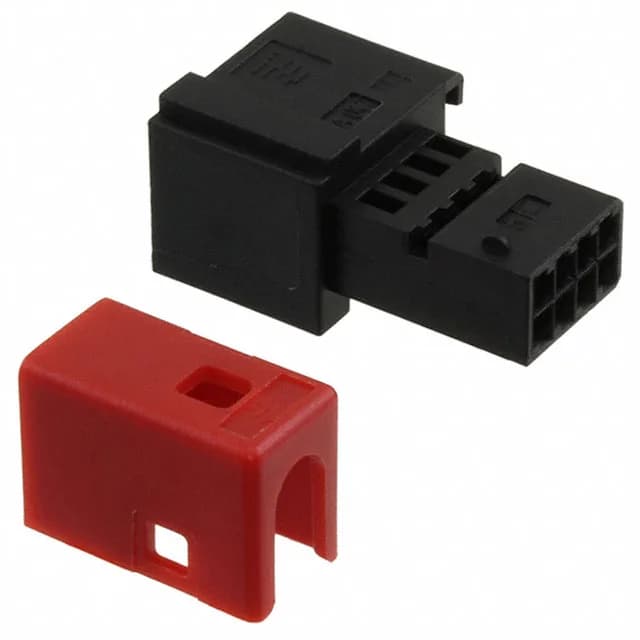

TE 284869-1 Micro Quadlok Plug Housing, 8 Pos 2.54mm

MPN284869-1
Active

TE Micro Quadlok plug housing, 8 positions, 2 rows, 0.100" (2.54mm) pitch, locking ramp, free-hanging, crimp termination, black PBT housing, -25°C to 85°C.

$1.6000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 284869-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro Quadlok
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

284869-1 specifications
ParameterValue
SeriesMicro Quadlok
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLocking Ramp
Operating temperature-25°C ~ 85°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Rows2
Contact terminationCrimp
Positions8

Product details

The TE 284869-1 is an 8-position, 2-row plug housing from the Micro Quadlok series.

Contacts not included — order them separately

The listing note is clear: contacts are not included. This housing ships empty. The housing uses standard crimp termination, so any qualified Micro Quadlok female terminal that fits the 2-row cavity layout works. Factor the terminal part number into your BOM before you commit the build.

Locking ramp keeps the pair mated

The fastening type is a locking ramp — an integral latch on the housing that snaps over the mating receptacle's catch. No secondary lock is needed for most duty cycles, though the Micro Quadlok system also offers a TPA (terminal position assurance) option if your quality plan demands it.

Frequently asked questions

Is the 284869-1 a plug or receptacle housing?

It's a plug housing — the half that carries the female socket contacts and mates into a receptacle. The connector type is listed as Plug, and the contact type is Female Socket.

Does the 284869-1 include contacts?

No. Contacts are not included — the housing ships empty. You must order the matching Micro Quadlok female crimp terminals separately.
