TE Connectivity AMP Connectors 284869-2 — Connector Housings

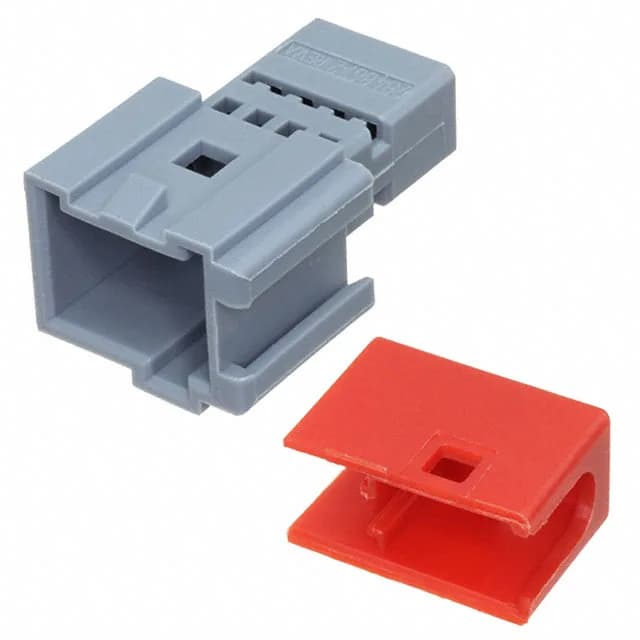

TE Connectivity 284869-2 Micro Quadlok 8 Pos Plug Housing

MPN284869-2
Active

TE Connectivity Micro Quadlok plug housing, 284869-2, 8 positions, 2 rows, 0.100" (2.54mm) pitch, 0.118" (3.00mm) row spacing, free-hanging, crimp termination, gray PBT housing, contacts not included.

$3.1300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMicro Quadlok
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

284869-2 specifications
ParameterValue
SeriesMicro Quadlok
TypeMale Pin
MountingFree Hanging (In-Line)
Connector typePlug
Operating temperature-25°C ~ 85°C
ColorGray
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBox
Row spacing0.118\" (3.00mm)
Rows2
Contact terminationCrimp
Positions8

Product details

8-Position, 2.54mm Pitch Micro Quadlok Plug Housing

Gray vs Black — The 284869-1 Difference

The 284869-1 is the black-housing sibling of this part — same 8-position, 2-row layout, same PBT material, same 2.54mm pitch, same free-hanging crimp design. The only meaningful difference is the color. If your BOM calls out gray (284869-2) and black shows up, the fit and function are identical, but the harness assembly visual check may flag it. No electrical or mechanical delta — just a color code. Both are active and RoHS compliant.

It's RoHS compliant per the current listing. No official cross-reference or second-source exists beyond the color variant 284869-1.

Frequently asked questions

Does 284869-2 come with contacts?

No — the listing explicitly states 'Contacts Not Included'. You must order the matching male pin crimp terminals separately for this 8-position Micro Quadlok plug housing.

What is the difference between 284869-2 and 284869-1?

The only difference is the housing color: 284869-2 is gray, 284869-1 is black. Both are 8-position, 2-row Micro Quadlok plug housings with the same pitch, material, and active lifecycle. No functional difference — just a color code that may matter for harness visual inspection.
