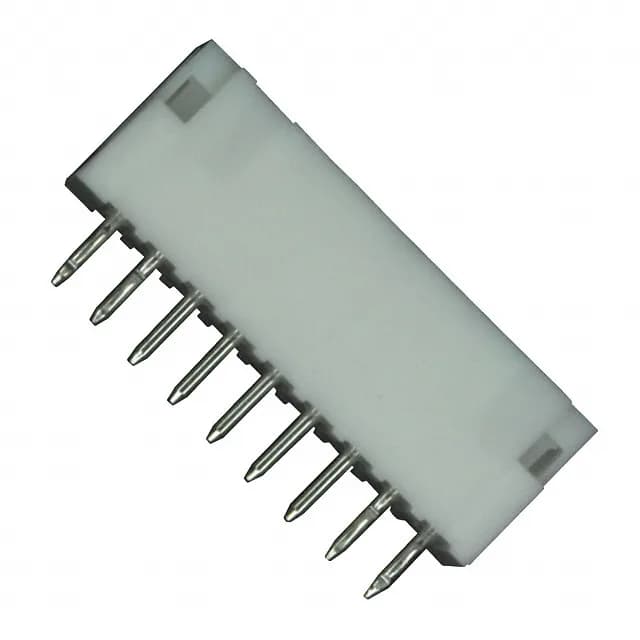

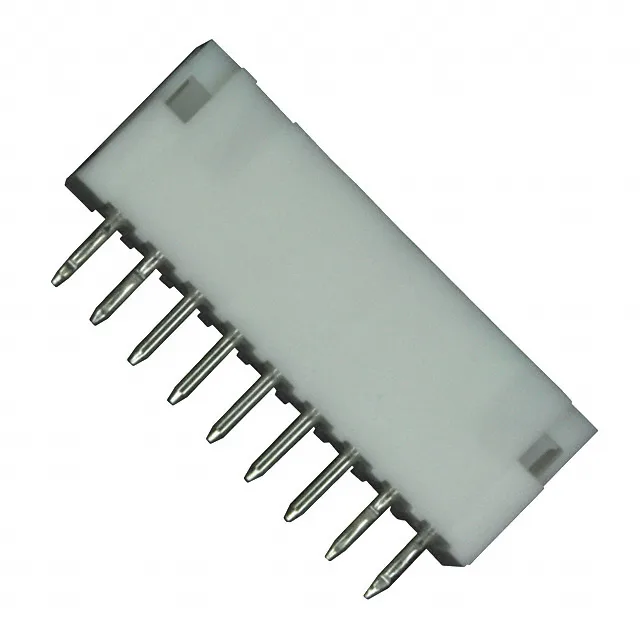

TE Connectivity AMP CT series, 292132-9, board-to-cable/wire header, 9 positions, single row, 2.00 mm pitch, shrouded 4-wall, through-hole, kinked pin solder termination, tin-plated contacts, detent lock, UL94 V-0 natural PA66 housing.
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.268\" (6.80mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.358\" (9.09mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.165\" (4.20mm) |
The detent lock provides retention feedback without a secondary latch mechanism.
The header mates with TE CT series crimp socket housings — confirm the circuit count and keying match your receptacle.
This header mates with TE CT series crimp socket housings (receptacles) that accept 2.00 mm pitch contacts. Confirm the circuit count and keying match your receptacle part number.
Yes, it is ROHS3 compliant.
Overall contact length is 0.358" (9.09 mm). The mating pin length is 0.165" (4.20 mm) and the solder post length is 0.126" (3.20 mm).
