TE Connectivity AMP Connectors 292161-8 — Pin Headers

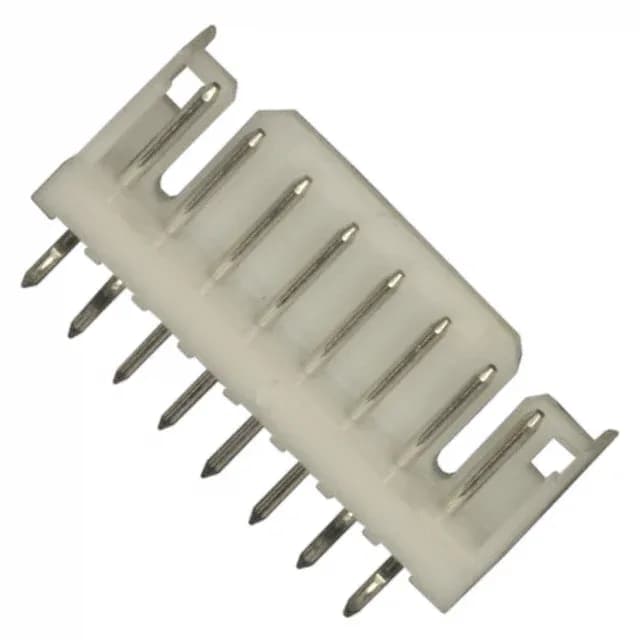

292161-8 TE Connectivity CT Header, 8 Pos, 2mm, Through Hole

MPN292161-8
Active

TE Connectivity AMP CT series header, 292161-8, 8 positions, single row, 2.00mm pitch, through hole, shrouded-3 wall, detent lock, tin contacts, UL94 V-0 natural PA66 housing.

$1.0700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 292161-8 datasheet (PDF)
RoHSRoHS Compliant
SeriesCT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

292161-8 key specifications
ParameterValue
SeriesCT
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating125VAC
Current ratingVaries by Wire Gauge
Contact materialBrass
Insulation colorNatural
Insulation height0.268\" (6.80mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Material flammability ratingUL94 V-0

All specifications

292161-8 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 3 Wall
TerminationKinked Pin, Solder
ApplicationsGeneral Purpose
Contact shapeCircular
Rows1
Pitch0.079\" (2.00mm)
Positions8
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Overall contact length0.370\" (9.40mm)
Contact finish - matingTin
Contact length - mating0.177\" (4.50mm)

Product details

2.00 mm Pitch, 8 Positions, Single-Row Through Hole

This header mates with TE CT series receptacle housings that accept 20-24 AWG crimp terminals. The kinked solder tails (0.126" post length) sit flush on the PCB pad for consistent solder fillet formation.

Peer Comparison: 1-292164-1

The closest sibling is the 1-292164-1—also a CT series header, but with 11 positions (vs 8), right-angle orientation (vs vertical), and a 4-wall shroud (vs 3-wall). Both share the 2.00mm pitch, detent lock, and tin plating. If your board layout needs a right-angle exit or more circuits, the 1-292164-1 is the direct form-fit-function alternative within the same series.

Frequently asked questions

Where can I buy 292161-8 and how is it quoted?

No stock-holding claim; availability is verified per request.

What is the pinout and configuration of 292161-8?

Single-row, 8 positions, all loaded. Through-hole vertical mount with kinked solder pins. 2.00mm pitch. Mates with CT series receptacle housings.

Is 292161-8 RoHS compliant?

Yes, RoHS compliant per TE's compliance documentation.

What is the closest functional second-source to 292161-8?

The 1-292164-1 is the nearest alternative within the same CT series—same pitch, same locking, but 11 positions and right-angle orientation. For an 8-position vertical header, the 292161-8 is the direct fit.
