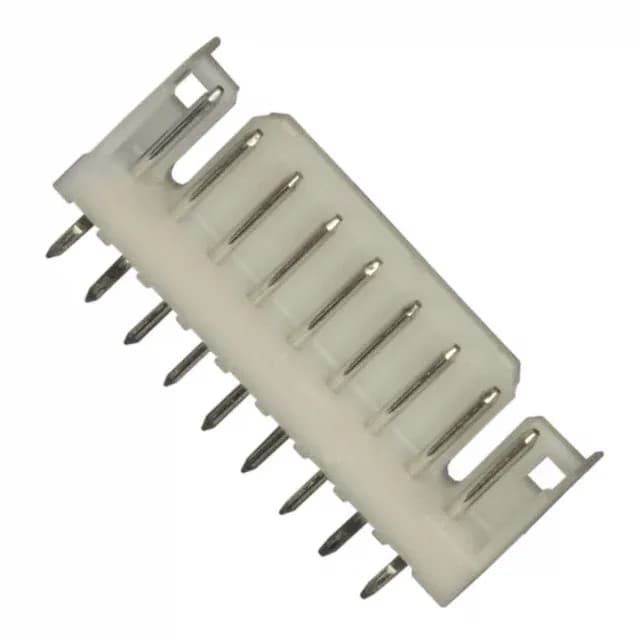

TE Connectivity AMP Connectors CT series, 292161-9, Board to Cable/Wire header, 9 positions, 1 row, 0.079" (2.00mm) pitch, Through Hole, Tin contacts, Detent Lock, UL94 V-0, Natural
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.268\" (6.80mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.370\" (9.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.177\" (4.50mm) |
The 292161-9 is a single-row, 9-position header from TE's CT series, pitched at 2.00 mm — tighter than the old 0.100-inch standard, so the board footprint is smaller.
This header mates with TE CT series crimp receptacles (like the 292164-* family) — the 3-wall shrouding guides the plug home and prevents misalignment.
292161-9 is active and available through our sourcing desk. Current pricing and lead time are confirmed at quote time against your BOM quantity — submit an RFQ and we'll source it from our multi-distributor network.
The 292161-9 mates with TE CT series crimp receptacles, typically the 292164-* family (same 2.00 mm pitch, 9-position, detent lock). Confirm the exact housing part number against your wire gauge and terminal selection.
