2.00 mm Pitch SMD Header — 4 Positions, Single Row

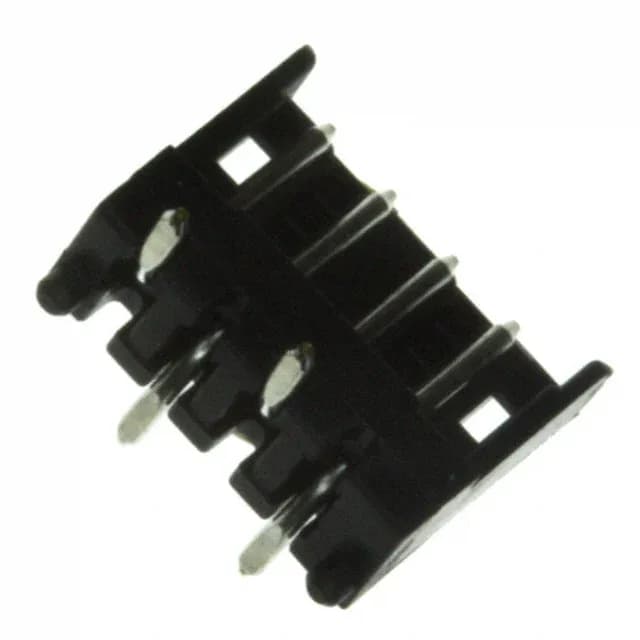

The 292171-4 is a 4-position, single-row, surface-mount header from TE Connectivity's CT series. It mates with a CT-series cable receptacle for a board-to-wire connection. The shrouded 3-wall design and detent lock provide positive alignment and retention against vibration.
Surface Mount Termination and Solder Process
Termination is surface mount (SMD), with tin-plated posts. The insulation height of 0.307" (7.80 mm) and mating contact length of 0.177" (4.50 mm) define the z-height budget for the mated assembly. The header is supplied in tube packaging, compatible with standard tube feeders or manual placement.
