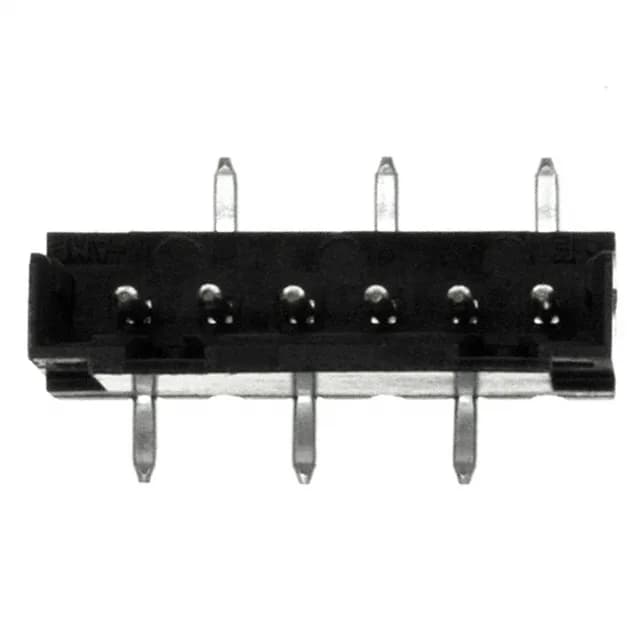

TE Connectivity AMP Connectors CT series, 292171-6, Board to Cable/Wire header, 6 circuits, 2.00mm pitch, SMT, shrouded 3-wall, detent lock, tin-plated male pins, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.307\" (7.80mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Board Guide |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.177\" (4.50mm) |
The 292171-6 is a 6-position, single-row surface-mount header from TE's CT series, pitched at 2.00mm for compact wire-to-board interconnects. The shrouded 3-wall housing and detent lock keep the mating receptacle secure under vibration.
The 2.00mm pitch matches standard 2mm ribbon cable spacing, but the header is designed for discrete wire crimp receptacles, not IDC ribbon connectors. Use TE CT series crimp housings for wire-to-board termination.
