Board to Cable/Wire Header, 7 Circuits
The 292171-7 is a 7-circuit member of TE's CT header line, a shrouded single-row board-to-cable/wire connector with a detent lock. The header mounts surface-mount with solder termination.

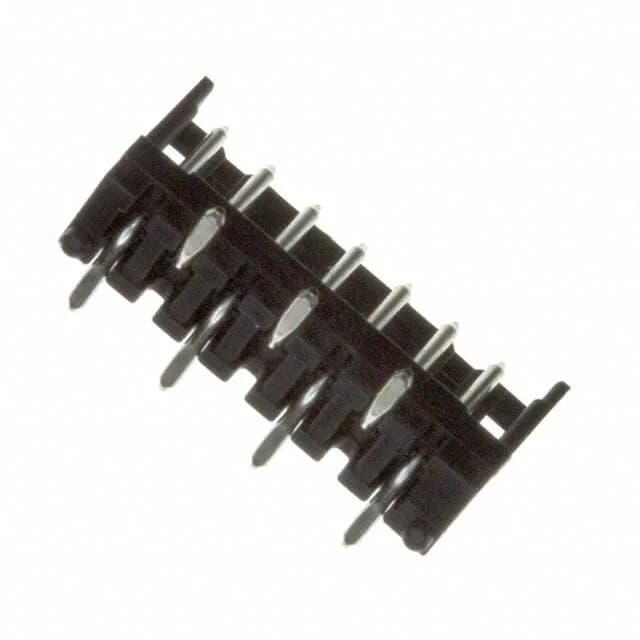

TE CT 292171-7 Header, 7 Pos 2.00mm
MPN292171-7
Active
TE Connectivity AMP Connectors CT header, order code 292171-7, 7 positions, single row, 2.00 mm pitch, 125 VAC, tin-plated mating contacts, surface-mount solder termination.
$0.7706Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.307\" (7.80mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Board Guide |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.177\" (4.50mm) |
Product details
Frequently asked questions
What is the 292171-7's board-to-wire style designation?
The 292171-7 is listed as a Board to Cable/Wire style connector.
