2.00 mm pitch SMD header for wire-to-board
Its 2.00 mm pitch and SMD termination suit compact, low-profile PCB layouts where a reliable wire-to-board interface is needed. The tin-plated mating contacts and detent lock provide a secure connection with the matching CT receptacle, while the UL94 V-0 rated PA6T housing handles typical indoor equipment environments.

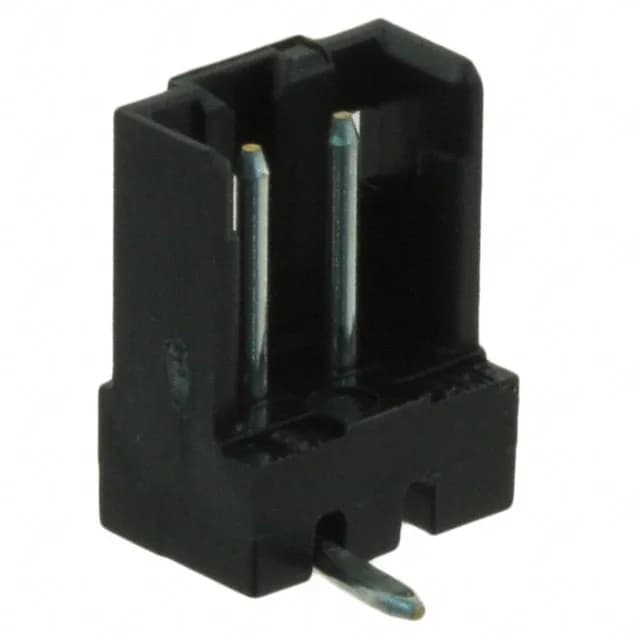

At 2 positions, this header is the smallest circuit count in the CT series SMD shrouded line. The 2.00 mm pitch means the two pins occupy a 4.00 mm wide footprint on the PCB, with a mating pin length of 0.177" (4.50 mm) to engage the receptacle contact. The 292172-2 mates with TE CT series crimp-type receptacle housings (e.g., 292133-2 or similar 2-position housings) using the appropriate female crimp terminals.
