TE Connectivity AMP Connectors 292172-3 — Pin Headers

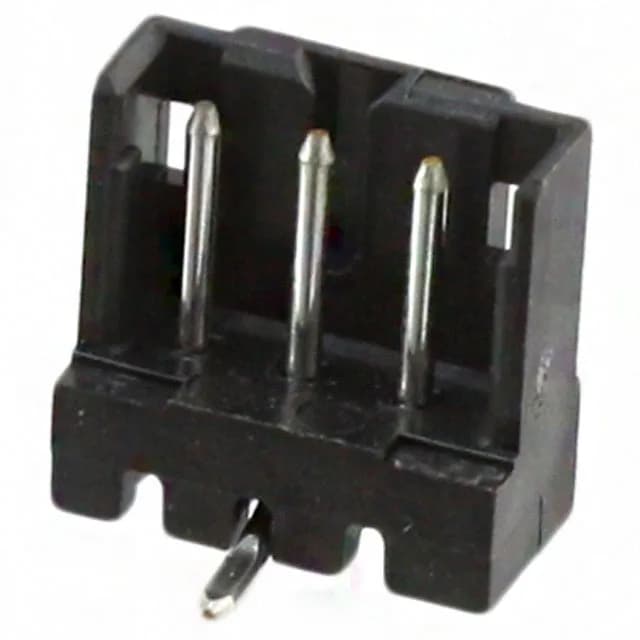

292172-3 TE Connectivity CT Header, 3-Pos, 2mm Pitch, SMD

MPN292172-3
Active

TE Connectivity AMP Connectors CT series, 292172-3, Board to Cable/Wire header, 3 circuits, 0.079" (2.00mm) pitch, shrouded 3-wall, surface-mount, tin-plated male pins, detent lock, UL94 V-0.

$0.8000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 292172-3 datasheet (PDF)
RoHSROHS3 Compliant
SeriesCT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

292172-3 key specifications
ParameterValue
SeriesCT
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeDetent Lock
Voltage rating125VAC
Current ratingVaries by Wire Gauge
Contact materialBrass
Insulation colorBlack
Insulation height0.307\" (7.80mm)
Insulation materialPolyamide (PA6T), Nylon 6T, Glass Filled
Material flammability ratingUL94 V-0

All specifications

292172-3 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTube
ShroudingShrouded - 3 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeCircular
Rows1
Pitch0.079\" (2.00mm)
Positions3
Contact finish - postTin
Contact finish - matingTin
Contact length - mating0.177\" (4.50mm)

Product details

3-Pin SMD Header for Tight Wire-to-Board Runs

Its 0.079" (2.00mm) pitch keeps the footprint compact, while the shrouded 3-wall housing guides the mating receptacle and protects the male pins from damage during assembly.

Surface-Mount Termination for Reflow Assembly

Termination is solder, with a surface-mount (SMD) mounting type. This allows the header to be placed and reflowed alongside other SMD components, reducing hand-soldering steps. The housing is black polyamide (PA6T) glass-filled, rated UL94 V-0 for flammability.

Frequently asked questions

What is the pitch and mounting type of 292172-3?

The pitch is 0.079" (2.00mm) and the mounting type is surface-mount (SMD). This is a single-row, 3-position header with a shrouded 3-wall design.
