Board-to-wire header, 4 circuits, 2 mm pitch

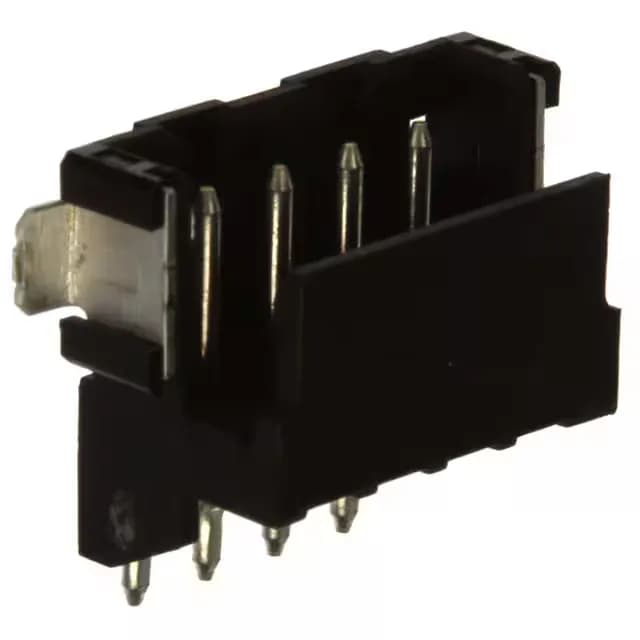

The 292173-4 is the 4-circuit member of TE's CT series board-to-cable/wire header line, surface-mount right-angle with a shrouded 4-wall housing and detent lock.
TE 292173-4 CT Header, 4-Pos 2mm SMD R/A
MPN292173-4
Active
TE Connectivity CT series header, order code 292173-4, 4 positions, single row, 2.00 mm pitch, 125 VAC, tin-plated mating contacts, surface-mount right-angle, solder termination.
$1.6700Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCT
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.165\" (4.20mm) |
Product details
Frequently asked questions
What is the mating connector for the 292173-4?
The 292173-4 is a board-to-cable/wire header; it mates with a CT series receptacle housing that accepts the corresponding crimp terminals. The pitch and locking detent are shared across the CT series.
Is the 292173-4 RoHS compliant?
Yes, the 292173-4 is listed as RoHS Compliant.
