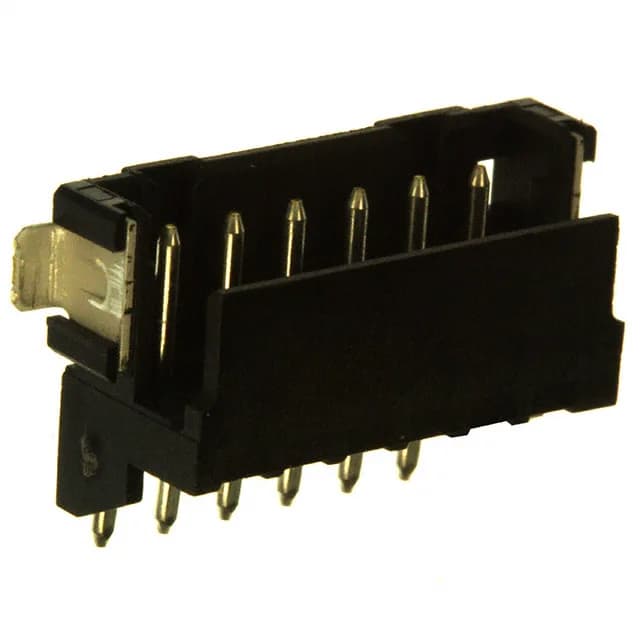

The 292173-6: At this pitch, the routing density is high enough for compact designs but still leaves room for a single row of 6 circuits. Rated 125 VAC, with current rating varying by wire gauge. This means the connector's power handling is limited by the wire size in the mating half — not the header itself. For a typical 22 AWG wire, expect around 3 A per contact; always check the derating curve for your specific wire gauge and ambient temperature.
SMT right-angle — board-edge fit and reflow considerations
These are practical aids for SMT assembly — they reduce tombstoning and misalignment, especially on a right-angle part where the centre of gravity is off-axis.
Shrouded 4-wall with detent lock — vibration resistance and pin protection
The shrouded 4-wall design fully encloses the male pins, protecting them from bending during handling and mating. Tin-plated mating surface on the male pins. If your application sees frequent reconnects or corrosive atmospheres, consider a gold-plated variant in the CT series.
No stock-holding claim; availability is verified per order.
The closest functional alternative in the CT series is the 1-292164-1 — same 2.00 mm pitch, same shrouded 4-wall and detent lock, but with 11 positions instead of 6, and through-hole right-angle termination instead of SMT. The through-hole version gives stronger mechanical retention on the board, while the SMT version (292173-6) saves on assembly cost and suits double-sided boards. Both are active and tin-plated.
