2.00 mm Pitch SMT Header for Wire-to-Board

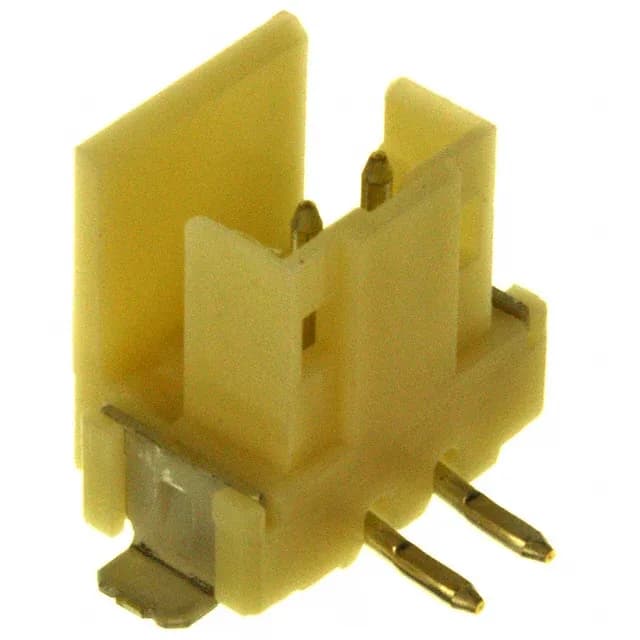

The 292174-2 is a 2-position, single-row shrouded header from the TE CT series, designed for board-to-cable/wire applications. It uses a 2.00 mm pitch, which balances routing density with reliable solder joints on standard PCB land patterns. The shrouded 4-wall design protects the male pins during handling and mating, and the detent lock provides a positive retention against vibration or cable tug. Rated at 125 VAC, the current capacity depends on the wire gauge used in the mating connector — a common derating consideration for wire-to-board interfaces.
Surface-Mount Termination with Board Retention
Termination is solder to surface-mount pads, with a board guide and solder retention features to keep the part aligned during reflow and resist shear forces from the cable assembly. The insulation height of 7.80 mm and mating pin length of 4.50 mm set the stack-up clearance for the mating receptacle housing.
Active Production and Sourcing
Available in Tape & Reel or Cut Tape packaging for pick-and-place assembly. Sourced per RFQ — confirm current pricing and lead time at quote.
