SMD Header for Board-to-Cable Wiring

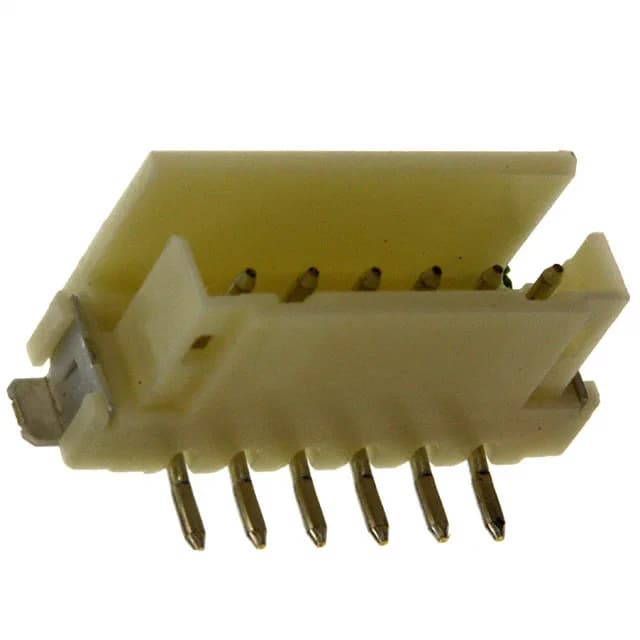

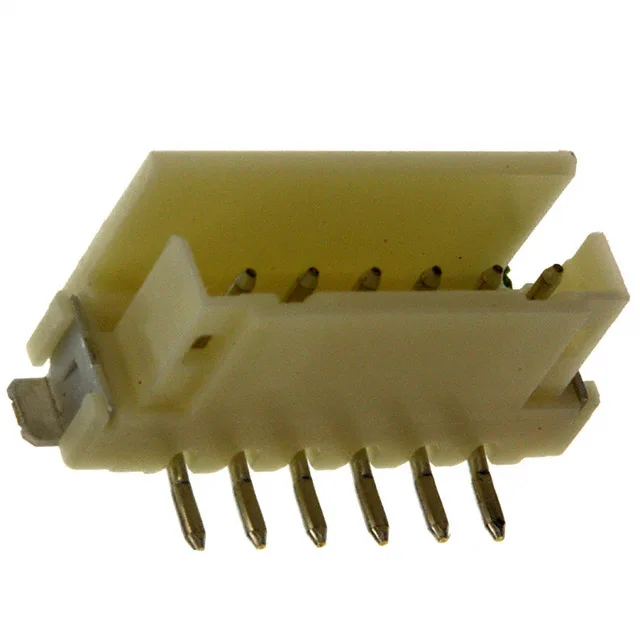

The 292174-6 is a 6-position, single-row header from TE's CT series, designed for board-to-cable/wire connections. Its 0.079" (2.00mm) pitch keeps the footprint compact while allowing enough room for routing traces between pads on a standard PCB. The shrouded 4-wall design protects the male pins from bending during mating and prevents mis-mating with non-keyed connectors — a practical feature for field-service or harness assembly where the connector is mated blind. The detent lock provides a positive retention force that resists vibration-induced disconnection without needing a separate locking clip or screw.
SMT Termination and Board Retention
Surface-mount termination suits automated pick-and-place assembly. The board guide and solder retention features help align the part during reflow and keep the solder joints intact under cable strain. The insulation material is glass-filled nylon rated UL94 V-0, meeting the flame-retardancy requirement for equipment inside an enclosure.
