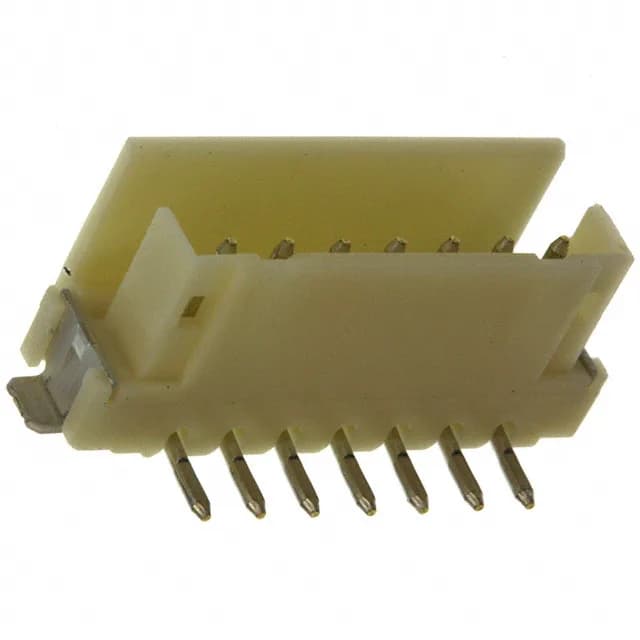

TE Connectivity CT series header, order code 292174-7, 7 positions, single row, 2.00 mm pitch, 125 VAC, tin-plated mating contacts, surface-mount, shrouded - 4 wall, detent lock, solder termination.
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.307\" (7.80mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.177\" (4.50mm) |
The 292174-7 is the 7-circuit member of TE Connectivity's CT series board-to-wire header line, a shrouded single-row SMT part with a detent lock. The housing is glass-filled nylon rated UL94 V-0.
A detent lock holds the header mated to the receptacle — no secondary latch hardware needed.
Status is Active, ROHS3 compliant. No lifecycle discontinuation or successor is recorded. Sourced per RFQ against BOM quantity.
ROHS3 compliance is confirmed. The housing material carries UL94 V-0 flammability rating.
Board to Cable/Wire — a shrouded header that mates with a CT series receptacle.
