Board-fit and routing with 2.00 mm pitch

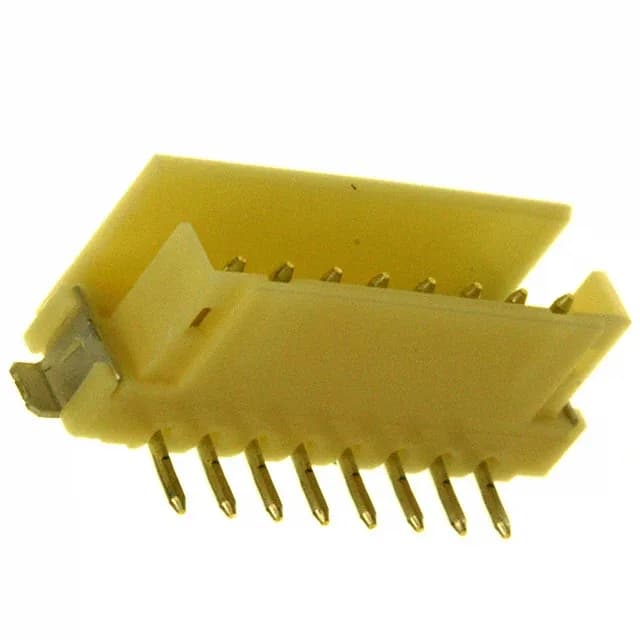

The 292174-8: The 0.079" (2.00mm) pitch sets the PCB footprint for an 8-position single-row header — each contact centerline is 2.00 mm from the next, which keeps the board-side routing density moderate and compatible with standard 2.00 mm crimp housings from the CT series.
Surface mount assembly and contact plating
Termination is solder-only — the SMT pads are designed for reflow, not press-fit. The natural color makes visual inspection of solder joints straightforward after reflow.
Sourcing and lifecycle for 292174-8
ROHS3 compliant. The base product number is 292174; the -8 suffix designates the 8-position variant. Tape & Reel and Cut Tape packaging are both listed, which suits both prototyping and volume placement.
