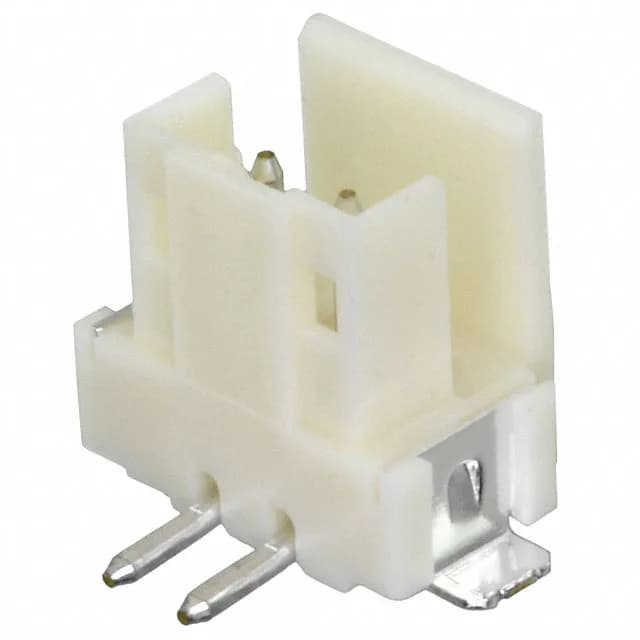

TE Connectivity AMP Connectors, CT series, 292175-2, header, 2 positions, 2.00 mm pitch, surface mount, shrouded - 4 wall, tin contacts, UL94 V-0, RoHS compliant.
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.307\" (7.80mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.177\" (4.50mm) |
The shrouded - 4 wall design mates with a corresponding CT crimp housing for a board-to-cable/wire connection.
Detent lock fastening provides audible feedback when mating with the receptacle — a solid click means the pair is seated and won't vibrate loose in a general-purpose environment.
The 292175-2 is a 2-position header on a 2.00 mm pitch, single row, surface mount.
Yes, the 292175-2 is listed as RoHS compliant.
