2.00 mm pitch SMD header with detent lock
The 292175-3 is a 3-position, single-row header from TE's CT series, pitched at 0.079" (2.00 mm) — a common spacing for wire-to-board connections in compact consumer and industrial gear.

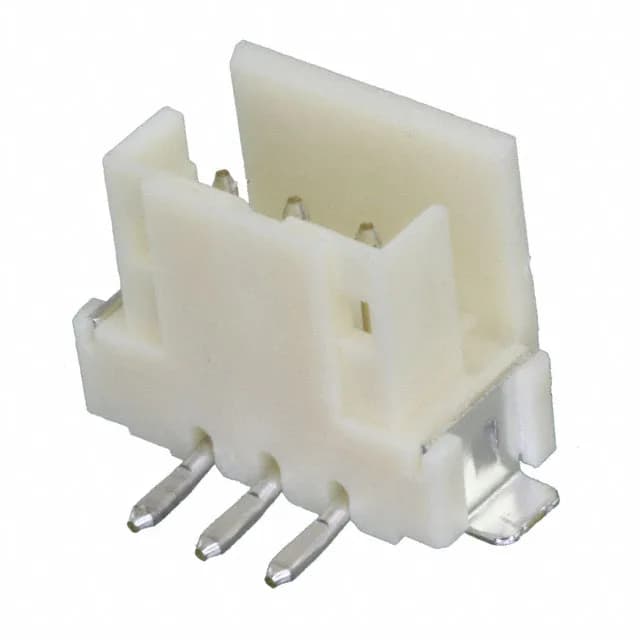

292175-3 TE Connectivity Header SMD 3 Pos 2mm Pitch
MPN292175-3
Active
TE Connectivity AMP Connectors CT series, 292175-3, board-to-cable/wire header, SMD, 3 positions, 2.00 mm pitch, shrouded 4-wall, detent lock, tin contacts, UL94 V-0.
$0.7747Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.307\" (7.80mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.177\" (4.50mm) |
Product details
Frequently asked questions
What is the pitch of 292175-3?
The mating pitch is 0.079" (2.00 mm).
Is 292175-3 surface mount?
Yes, it is a surface-mount (SMD) header.
Does 292175-3 have a locking mechanism?
Yes, it uses a detent lock to secure the mating receptacle.
Is 292175-3 RoHS compliant?
Yes, it is ROHS3 Compliant.
