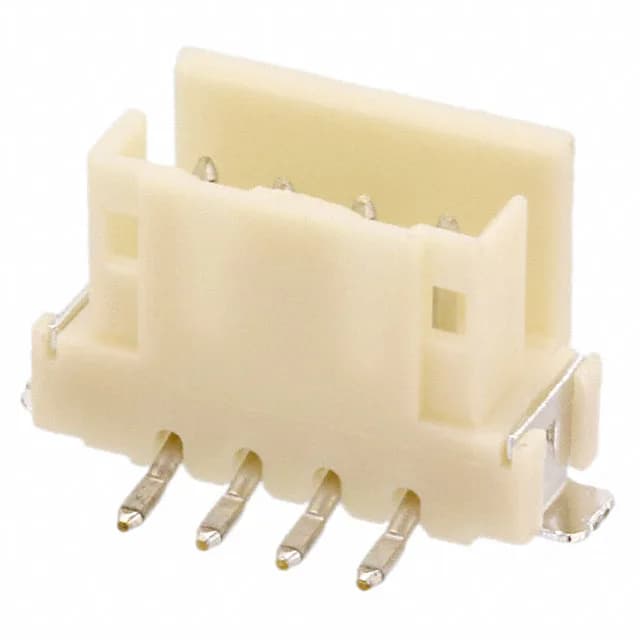

TE Connectivity CT header, order code 292175-4, 4 positions, single row, 2.00 mm pitch, 125 VAC, tin-plated mating contacts, surface-mount, solder termination.
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.307\" (7.80mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.177\" (4.50mm) |
The 292175-4: Single-row 2.00 mm pitch, tin-plated square pins, rated 125 VAC. The detent lock holds the mating housing in place without a separate latch.
Natural insulation color, 0.307" (7.80 mm) insulation height.
Pricing and stock are confirmed per RFQ.
The style is Board to Cable/Wire. It is a shrouded 4-wall header with a detent lock for mating with CT cable receptacles.
