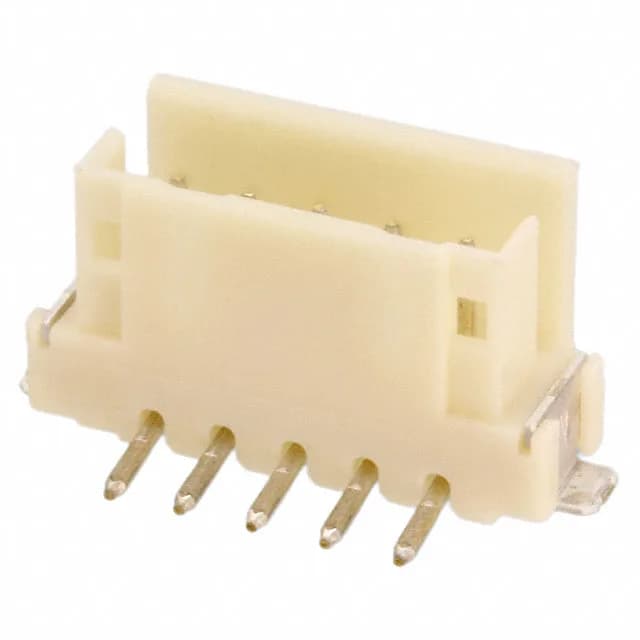

TE Connectivity AMP Connectors CT Series, Board to Cable/Wire, Header, Male Pin, 5 Positions, 0.079" (2.00mm) Pitch, Surface Mount, Shrouded - 4 Wall, Detent Lock, Tin Contacts, UL94 V-0, Natural
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.307\" (7.80mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.177\" (4.50mm) |
The 292175-5 is a 5-position, single-row header from TE's CT series, pitched at 0.079" (2.00 mm) and terminated by surface-mount solder.
This header mates with CT series crimp-socket housings (e.g., 1-292164-1) that accept the matching female terminals.
The current rating varies by the wire gauge used in the mating connector – it is not a single fixed value. Derate based on the actual wire size and ambient temperature.
Yes, it is ROHS3 compliant.
The 1-292164-1 is a through-hole, right-angle version with 11 positions – same CT series, same pitch and detent lock, but different mounting and position count. For a direct SMT replacement, check the 292175 base number for other position counts.
