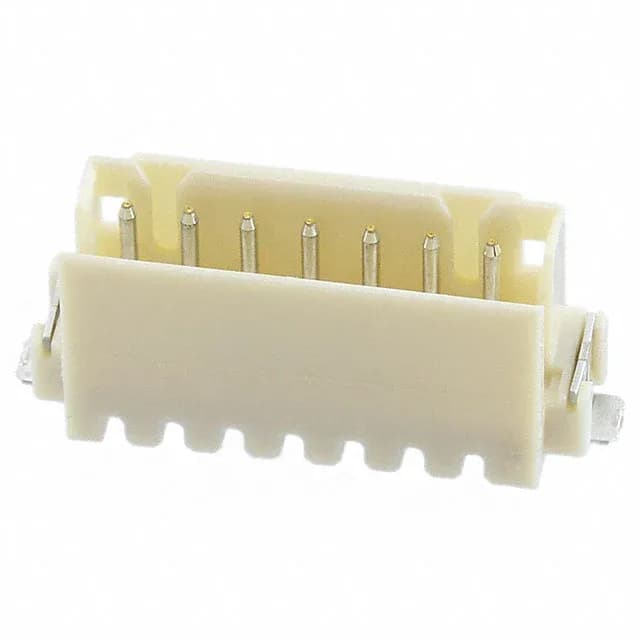

TE Connectivity AMP Connectors CT series, 292175-7, shrouded header, 7 positions, 2.00mm pitch, surface-mount, tin-plated male pins, detent lock, natural PA6T housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.307\" (7.80mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.177\" (4.50mm) |
The insulation height of 0.307" (7.80mm) and mating pin length of 0.177" (4.50mm) define the z-height budget above the board — confirm clearance with the mating receptacle and any enclosure lid.
This header mates with TE CT series crimp-type receptacle housings (e.g., 292207-x, 292208-x) that accept 22-28 AWG wire. The detent lock engages with the matching latch on the receptacle.
Available in Tape & Reel and Cut Tape packaging.
