1.50 mm Pitch Right-Angle Header — Board-Edge Routing

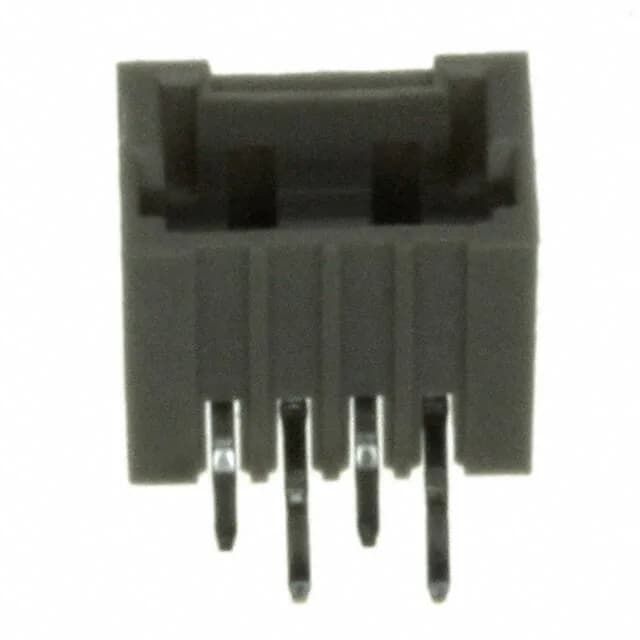

The 292206-4: Its 1.50 mm pitch sets a compact footprint on the PCB — tight enough for dense routing but still through-hole solderable with kinked pins for retention.
Through-Hole Termination and Contact Details
Contact material is brass, a standard choice for signal-level current. Insulation height is 0.193" (4.90 mm), giving the overall profile above the board.
Rated Voltage, Temperature, and Flammability
Voltage rating is 50 VAC, suitable for low-voltage signal and power distribution within equipment. For a 1.50 mm pitch system, expect per-contact current in the 2-3 A range with 24-28 AWG wire; confirm with the chosen receptacle and wire size.
It is RoHS compliant.
