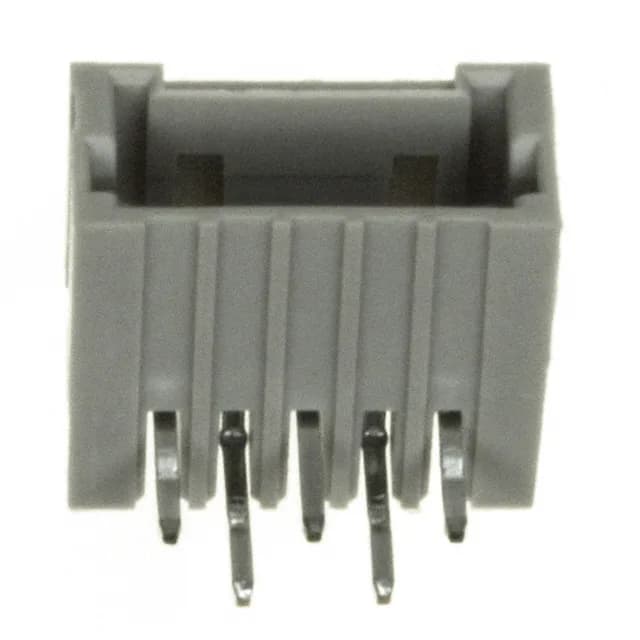

TE Connectivity AMP Connectors Mini CT, Board to Cable/Wire, Header, 5 Positions, 1.50 mm Pitch, Through Hole Right Angle, Shrouded 4 Wall, Detent Lock, Tin Plating, UL94 V-0
| Parameter | Value |
|---|---|
| Series | Mini CT |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation height | 0.193\" (4.90mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.094\" (2.40mm) |
The 4-wall shrouded housing with a detent lock provides a positive tactile mate and resists vibration-induced back-out — a practical fit for field-service equipment that sees periodic reconnect.
In practice, the 1.50 mm pitch and tin plating limit continuous current to about 2-3 A per circuit with 24 AWG; confirm the terminal's rating for your wire gauge.
RoHS3 compliant.
The mating pitch is 1.50 mm (0.059 inches), single-row layout.
Yes, it is RoHS3 compliant.
This header mates with a Mini CT receptacle housing and crimp terminals (sold separately). The mating half is a 5-position, 1.50 mm pitch receptacle from the same series.
