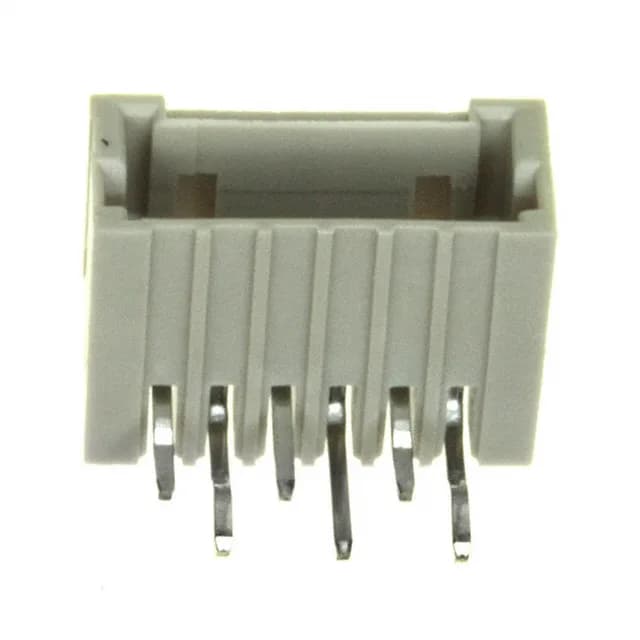

TE Connectivity AMP Mini CT header, 292206-6, 6 positions, 1.50 mm pitch, right-angle through-hole, shrouded 4-wall, detent lock, tin-plated contacts, UL94 V-0 gray nylon, active production.
| Parameter | Value |
|---|---|
| Series | Mini CT |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation height | 0.193\" (4.90mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.094\" (2.40mm) |
The 292206-6 is a 6-position, single-row header from TE's Mini CT series, on 1.50 mm pitch. A detent lock on the housing holds the mated pair together without a separate latch, giving you a positive click during assembly.
The 292206-6 header mates with a Mini CT receptacle housing (e.g., 292207 series) and the corresponding crimp terminals. The detent lock on the header engages with the receptacle latch — confirm the circuit count and wire gauge for the full assembly BOM.
The current rating varies by wire gauge used in the mating terminal — the header itself does not have a fixed amp rating. For a given build, the limiting factor is the terminal and wire size, not the header pins.
