The key difference is pitch: 1.50 mm on the 292206-8 vs 2.00 mm on the 1-292164-1. The 292206-8 carries 8 positions; the 1-292164-1 carries 11. Both are tin-plated, active, and use a detent lock. The 1.50 mm pitch saves board space but limits the per-contact current due to finer trace routing — choose the 2.00 mm version if board area allows and higher current per circuit is needed.

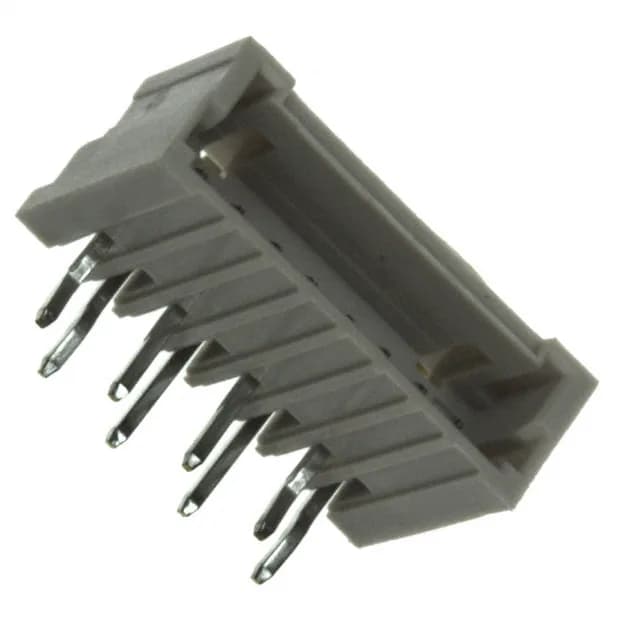

292206-8 TE Connectivity Mini CT Header, 8 Pos, 1.5mm Pitch
MPN292206-8
Active
TE Connectivity AMP Mini CT series, 292206-8, shrouded 4-wall header, 8 circuits, 1.50mm pitch, right-angle through-hole, tin-plated male pins, detent lock, UL94 V-0, rated 50 VAC, current limited by wire gauge.
$1.0300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMini CT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini CT |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation height | 0.193\" (4.90mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.094\" (2.40mm) |
Product details
Frequently asked questions
What is the pitch and orientation of the 292206-8?
The 292206-8 has a 1.50 mm pitch and is a right-angle through-hole header. It mates with a cable receptacle parallel to the PCB.
