Right-angle 9-position header for 1.50 mm pitch wire-to-board

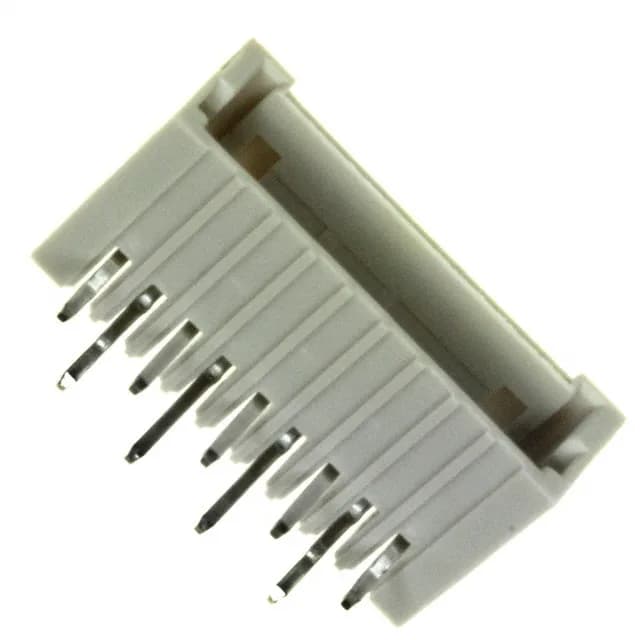

The 292206-9 is a 9-position, single-row header from TE's Mini CT series, designed for board-to-cable/wire connections at a 0.059" (1.50 mm) pitch. The right-angle through-hole termination keeps the wire exit parallel to the PCB, saving vertical clearance in tight enclosures. A full 4-wall shroud surrounds the male pins, protecting them during handling and guiding the mating receptacle into alignment. The detent lock provides audible and tactile feedback when fully mated, resisting vibration-induced disconnection.
Tin-plated contacts, temperature range, and flame rating
Both the mating and post surfaces are tin-plated, suitable for moderate mating-cycle applications where cost per position matters. The operating temperature spans -30°C to 105°C, covering most indoor and automotive cabin environments. The glass-filled nylon housing carries a UL94 V-0 flammability rating, meeting the safety requirement for equipment installed inside enclosures. Current rating is listed as varying by wire gauge, so the limiting factor is the attached wire, not the header itself.
Position count variation within the 292206 family
The 292206 family shares the same 1.50 mm pitch, right-angle orientation, shrouding, and detent lock across position counts. The 9-position 292206-9 is the highest count in the family; the 8-position 292206-8, 7-position 292206-7, and 6-position 292206-6 are identical in every other spec. If the BOM calls for fewer circuits, one of these siblings drops in without a footprint change.
