1.50 mm pitch, 5-position shrouded header for wire-to-board

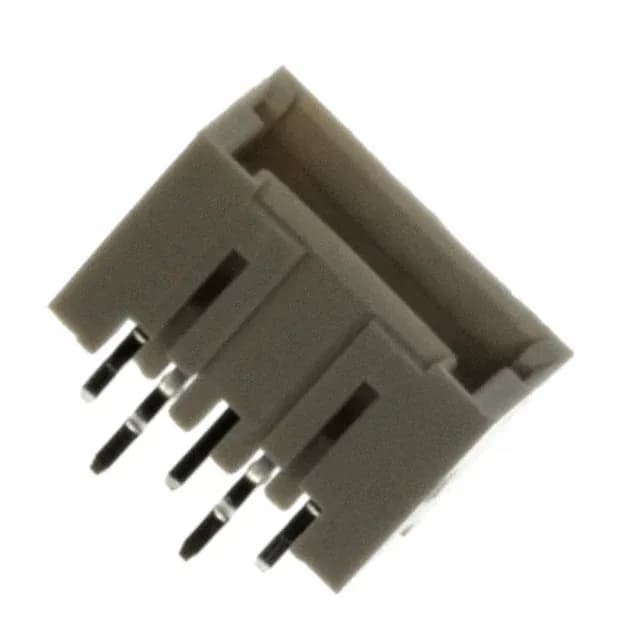

The 292207-5 is a TE Connectivity Mini CT series header, 5 positions in a single row at 0.059" (1.50mm) pitch, designed for board-to-cable/wire connections.
The overall contact length is 0.307" (7.80mm), with a mating length of 0.094" (2.40mm) and a post length of 0.118" (3.00mm).
Selection contrast: 1.50mm vs 2.00mm pitch in Mini CT
Compared to the 1-292164-1 (CT series, 2.00mm pitch, 11 positions, right-angle), the 292207-5 offers a tighter 1.50mm pitch and a vertical orientation, which reduces board footprint but limits position count to 5. The 1-292164-1 carries a 125 VAC rating versus 50 VAC here, reflecting the wider pitch's higher voltage standoff.
