1.50 mm pitch, 8-position shrouded header for wire-to-board

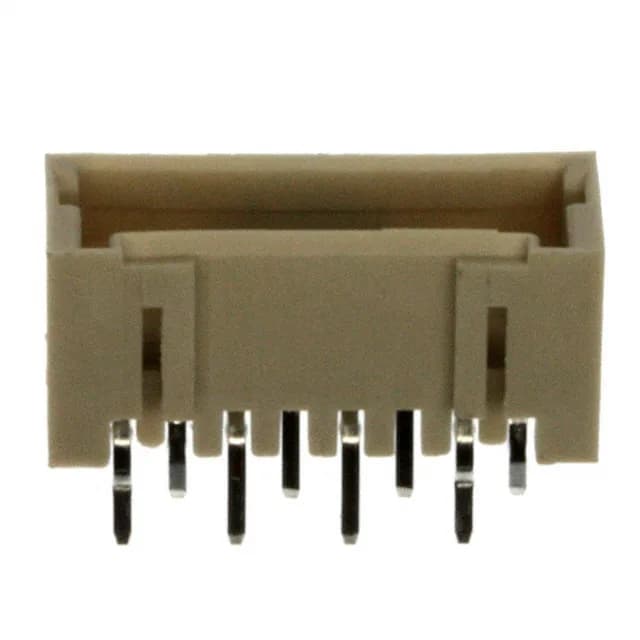

The 292207-8 is a Mini CT series header from TE Connectivity AMP Connectors, designed for board-to-cable/wire connections. It carries 8 positions in a single row on a 0.059" (1.50 mm) pitch, which sets the board footprint for routing density. The header is fully shrouded with 4 walls, so the mating receptacle is guided into place and bent pins are less likely in assembly or field service. The detent lock gives a positive latch when mated — no tools needed, and it holds against moderate vibration. The through-hole termination uses kinked pins for solder retention during wave soldering, and the contact finish is tin on both the mating and post sides. Tin is a workhorse for cost-sensitive, moderate-cycle applications; if you need higher mating cycle life, step to a gold-plated sibling in the same series.
Rated for 50 VAC, UL94 V-0 housing, -30°C to 105°C
Voltage rating is 50 VAC, which covers most low-voltage signal and power distribution inside an enclosure. The insulation is glass-filled nylon rated UL94 V-0, so it meets the flame-retardant requirement for equipment inside a cabinet. Operating temperature spans -30°C to 105°C, which suits indoor industrial and consumer environments but not extended exposure above 105°C. Current rating is listed as 'varies by wire gauge' — the limiting factor is the wire and crimp terminal, not the header contact itself. For a given wire size, check the derating curve in the product drawing. The contact material is brass with a tin plating thickness of 39.4 µin (1.00 µm) on the mating surface, which is standard for tin-plated signal contacts.
Active production, sourced per RFQ
Availability and current pricing are confirmed at quote time against your BOM quantity. We source this part through our multi-supplier channel — no stock-holding claim, but we can trace real date-coded stock when the franchise channel runs thin.
