1.50 mm pitch, 9-position shrouded header for wire-to-board

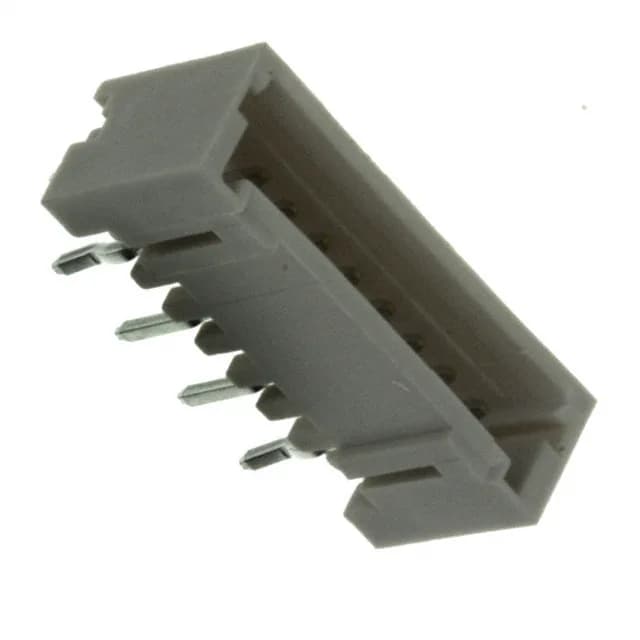

The 292207-9 is a 9-position, single-row header from the TE Mini CT series, designed for board-to-cable/wire interconnects at a 0.059" (1.50 mm) pitch. The full 4-wall shrouding and detent lock protect the male pins and keep the mating plug seated under vibration — a common need in compact consumer and automotive interior applications. Rated for 50 VAC and a current that varies by wire gauge, the header uses tin-on-tin contacts with 39.4 µin (1.00 µm) of mating-side finish — adequate for moderate mating cycles in a controlled environment.
Through-hole kinked pin termination
Position count difference vs 292207-8
If your BOM calls for 8 circuits, the 292207-8 is a drop-in replacement on the same 1.50 mm pitch footprint.
