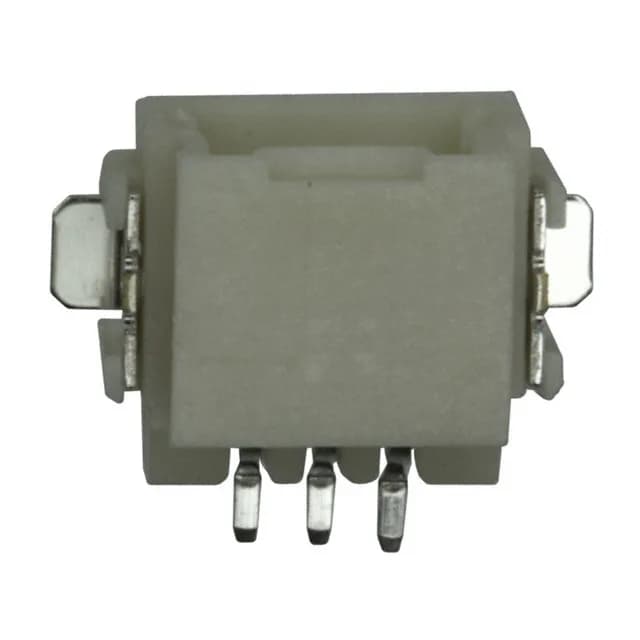

TE Connectivity AMP Connectors Mini CT series, header, 3 circuits, 1.50 mm pitch, surface-mount right-angle, shrouded with detent lock, tin-plated contacts, active production.
| Parameter | Value |
|---|---|
| Series | Mini CT |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Beige |
| Insulation height | 0.193\" (4.90mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.094\" (2.40mm) |
It mounts surface-mount, right-angle, with a shrouded 4-wall housing and a detent lock that holds the mating connector against vibration. The tin-plated male pins are rated for general-purpose signal duty; current depends on the wire gauge in the mating half.
This header mates with a Mini CT receptacle housing and crimp terminals. The detent lock on the header engages the matching latch on the receptacle side.
Yes, it is ROHS3 compliant.
