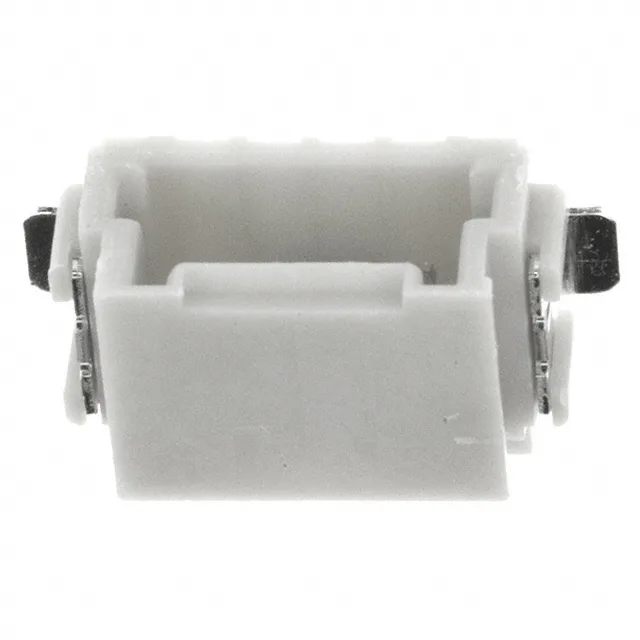

TE Connectivity AMP Connectors Mini CT header, 292227-4, 4 positions, 1.50mm pitch, surface-mount right-angle, shrouded 4-wall, detent lock, tin-plated contacts, UL94 V-0, -30°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Mini CT |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Beige |
| Insulation height | 0.193\" (4.90mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.094\" (2.40mm) |
That fits a tight board edge where a wider header would crowd other components.
In a moderate-vibration environment like a portable instrument, that click confirms the connection is seated before the assembly ships.
The PA6T housing with glass fill holds dimensional stability across that span without warping the SMT solder joints.
The pitch is 1.50mm (0.059") and the mounting type is Surface Mount, Right Angle. It is a shrouded header with detent lock.
Yes, 292227-4 is RoHS Compliant per the current directive.
