7-position, 1.50 mm pitch SMT right-angle header for wire-to-board

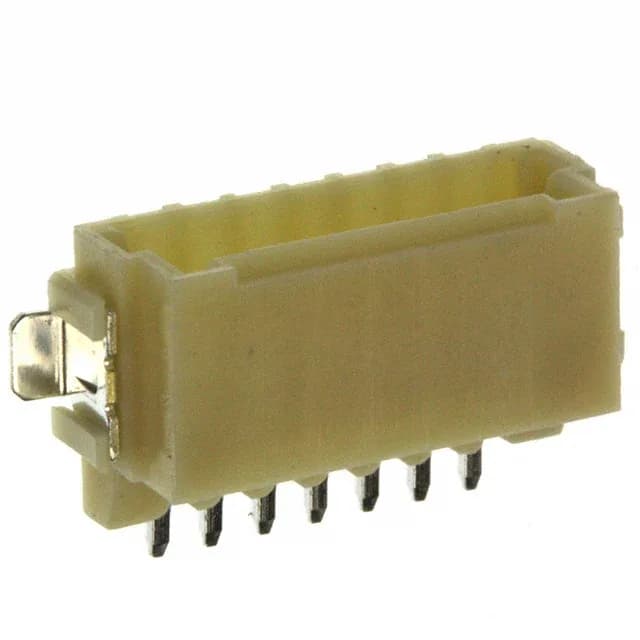

The 292227-7 is a 7-position, single-row header from TE's Mini CT series, designed for board-to-cable/wire connections. Its 1.50 mm pitch and surface-mount, right-angle orientation make it a compact choice for space-constrained PCBs where the cable exits parallel to the board. The header is fully shrouded with four walls, protecting the male pins and guiding the mating receptacle during assembly.
Board layout and assembly details
The 1.50 mm pitch demands a tight PCB footprint — confirm trace routing and via clearance before layout. The beige polyamide (PA6T) housing is glass-filled and rated UL94 V-0 for flame resistance.
Sourcing and lifecycle status
No stock-holding claim; availability confirmed per RFQ.
