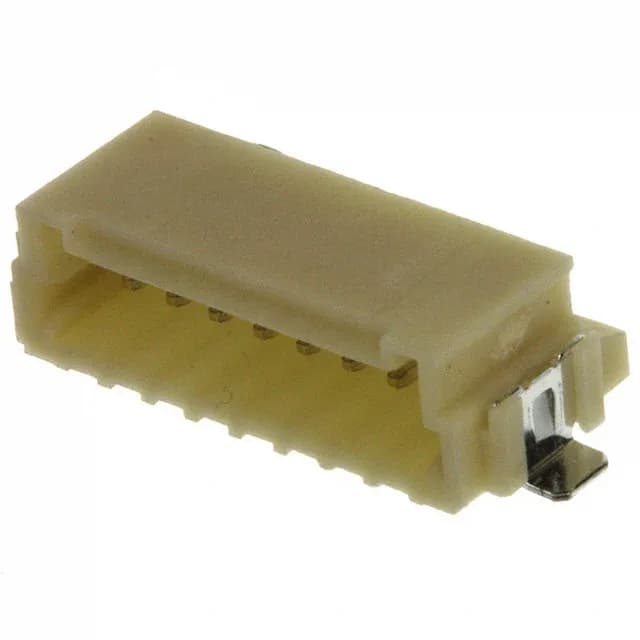

TE Connectivity AMP Connectors Mini CT header, 292227-8, 8 circuits, 1.50mm pitch, surface-mount right-angle, shrouded 4-wall, tin-plated male pins, detent lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Mini CT |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Beige |
| Insulation height | 0.193\" (4.90mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.094\" (2.40mm) |
The 292227-8: The 1.50 mm pitch and 8 positions set a compact board footprint for wire-to-board interconnects. The detent lock holds the pair mated against moderate vibration — no secondary latch, so it suits fixed equipment more than high-shock portable gear.
This is the board-side male header from the Mini CT series.
1.50 mm pitch, 8 positions, single row, all positions loaded.
Yes, RoHS compliant per the current directive.
