Pitch and orientation for tight board layouts

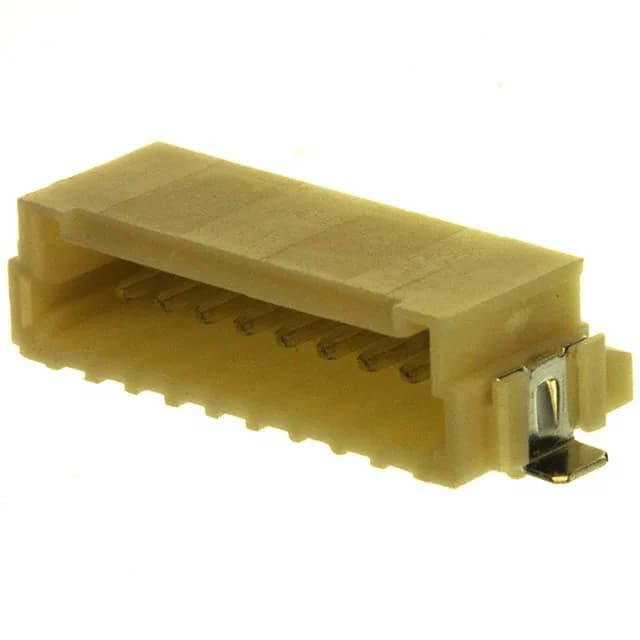

The 292227-9: This Mini CT header uses a 1.50 mm pitch across 9 positions, single-row, which keeps the board footprint narrow for dense routing. The surface-mount right-angle orientation places the header parallel to the PCB, saving vertical height in shallow enclosures.
Shrouded shell and detent lock for vibration
The 4-wall shrouding protects the male pins during handling and mis-mating, while the detent lock provides audible retention against cable pull. Board guide and solder retention features aid alignment during reflow and resist shear forces from the cable assembly.
Production status and sourcing
Supplied in Tape & Reel or Cut Tape, RoHS3 compliant, with a beige PA6T housing rated UL94 V-0.
