1.50 mm pitch SMD header for board-to-wire

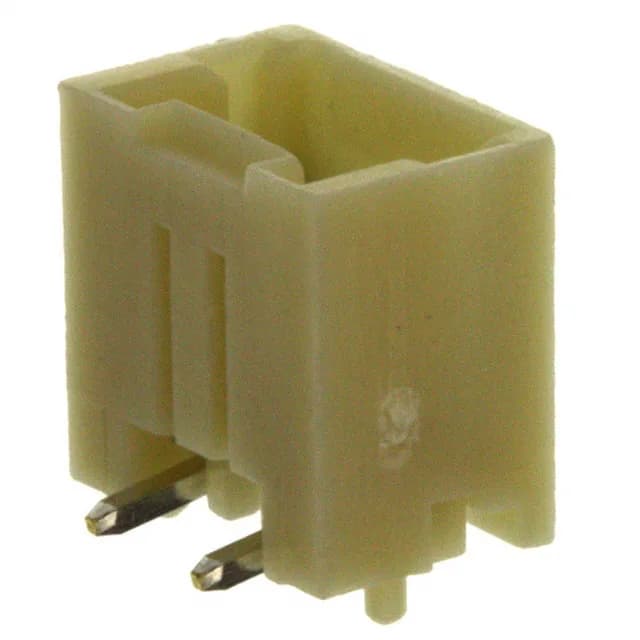

The 292230-3 is a 3-position, single-row header from TE's Mini CT series, designed for board-to-cable/wire connections. Its 0.059" (1.50mm) pitch suits compact PCB layouts where space is tight, and the surface-mount termination keeps the assembly profile low. The shrouded 4-wall housing with detent lock provides positive mating retention, important for applications subject to vibration or cable strain. The beige glass-filled nylon body carries a UL94 V-0 flammability rating.
Sourcing and lifecycle status
For volume BOM requirements, this part is sourced per RFQ — current pricing and lead time are confirmed at quote time against your target quantity.
Mating and termination checklist
Mates with Mini CT crimp receptacle housings (sold separately). The male pin contacts are square, tin-plated on both mating and post surfaces, rated for general-purpose duty. Current rating varies by wire gauge used in the mating half. The board guide feature aids alignment during SMD placement, reducing tombstoning risk. Operating temperature range is -30°C to 105°C.
