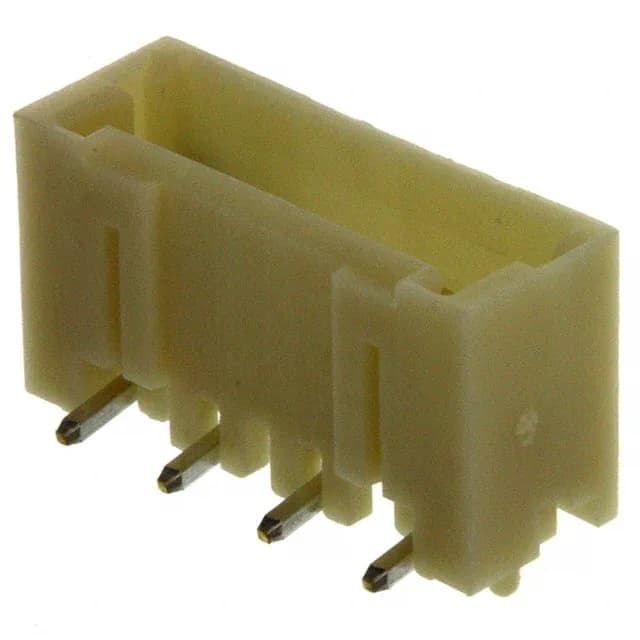

TE Connectivity AMP Connectors Mini CT, 292230-7, Board to Cable/Wire Header, 7 Positions, 1.50mm Pitch, Surface Mount, Shrouded - 4 Wall, Detent Lock, Tin Mating Contact Finish, Beige Insulation, UL94 V-0
| Parameter | Value |
|---|---|
| Series | Mini CT |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Beige |
| Insulation height | 0.272\" (6.91mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.094\" (2.40mm) |
The 1.50mm pitch keeps the footprint small, and the surface-mount termination suits automated assembly on a standard reflow line. The shrouded - 4 wall design and detent lock provide positive mating retention, reducing the chance of accidental disconnection in moderate-vibration environments.
This is a board-to-cable/wire header. It mates with a Mini CT series receptacle housing that accepts the corresponding crimp terminals. The 1.50mm pitch and 7-position single-row layout define the mating half — confirm the receptacle part number against your wire gauge and terminal type.
