Board Layout Fit for a 9-Pin SMD Header

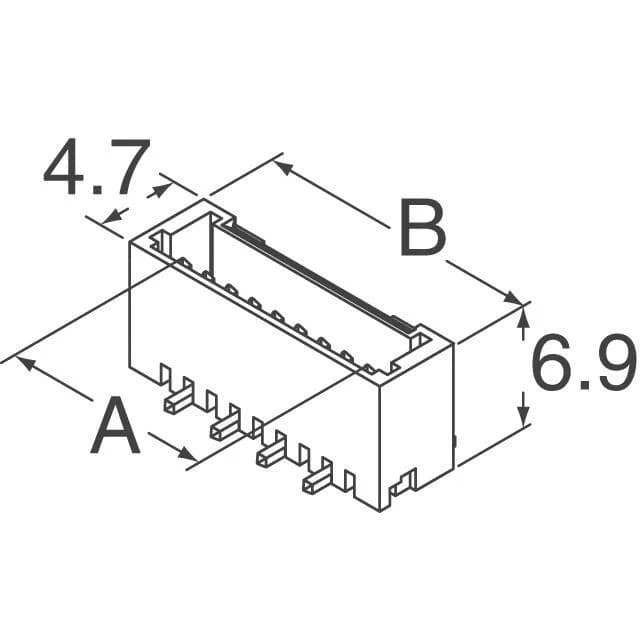

The 292230-9: The 1.50mm pitch sets a tight board footprint — expect 13.5mm overall width across the pins, which keeps routing dense on a two-layer board.
How This Header Compares to a 2.00mm Pitch Sibling
The 292230-9's 1.50mm pitch is tighter, which saves board real estate but limits the wire gauge range the mating receptacle can accept. The 1-292164-1 uses through-hole right-angle mounting with kinked pins, while the 292230-9 is SMD — a direct swap would require a board layout change. Both use tin-plated contacts and detent locks, so the mating feel and corrosion strategy are similar.
