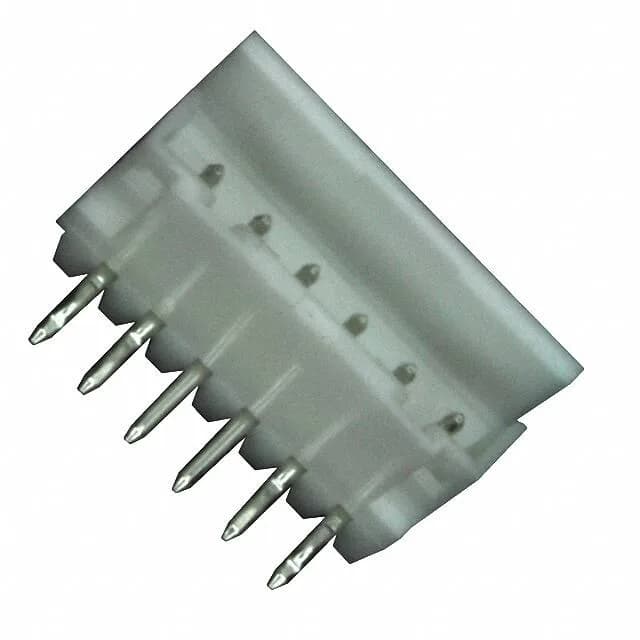

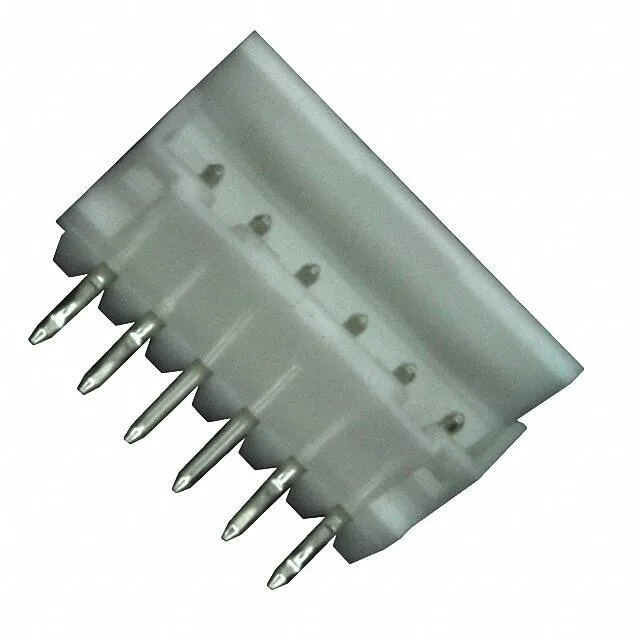

TE Connectivity AMP CT series header, 292250-6, 6 positions, 2.00mm pitch, single row, right-angle, through-hole, shrouded 4-wall, tin-plated contacts, detent lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.165\" (4.20mm) |
The 292250-6: The 6-position single-row layout keeps the trace fan-out simple on a two-layer board.
This shrouded header mates with CT series crimp receptacles — the 4-wall shroud guides the plug and prevents pin damage during blind mating. The kinked-pin solder tails provide mechanical retention through the board before wave soldering.
Yes, the 292250-6 is RoHS compliant per TE Connectivity's standard compliance documentation.
