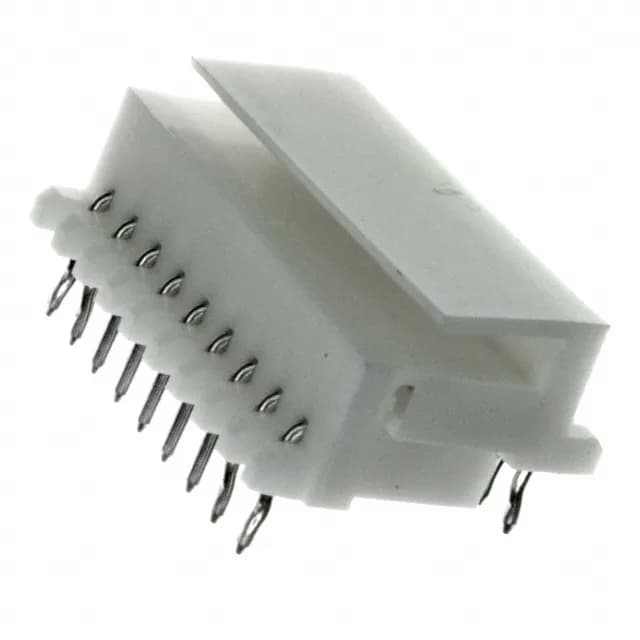

Right-angle 2 mm header for tight board-edge routing
Rated at 125 VAC, current depends on the wire gauge used on the mating side.
Why the 9-position count and detent lock matter
9 circuits is an uncommon count — most single-row headers jump from 8 to 10 positions. The 292250-9 fills that specific BOM gap for a 9-wire interface. The closest sibling in the same CT series is the 1-292164-1, which is identical in every spec except it carries 11 positions. If your harness needs 11 wires, that sibling is a direct swap; for 9 wires, this is the one. The detent lock is a simple, reliable retention method — no screws, no latches to break. It mates with the matching CT receptacle housing and gives a tactile click that confirms full engagement.
