2mm pitch, 5 positions, right-angle footprint
The 292253-5: This is a 5-position, single-row header on 2.00mm pitch, right-angle orientation — the pins sit parallel to the board, saving vertical space in a tight enclosure.

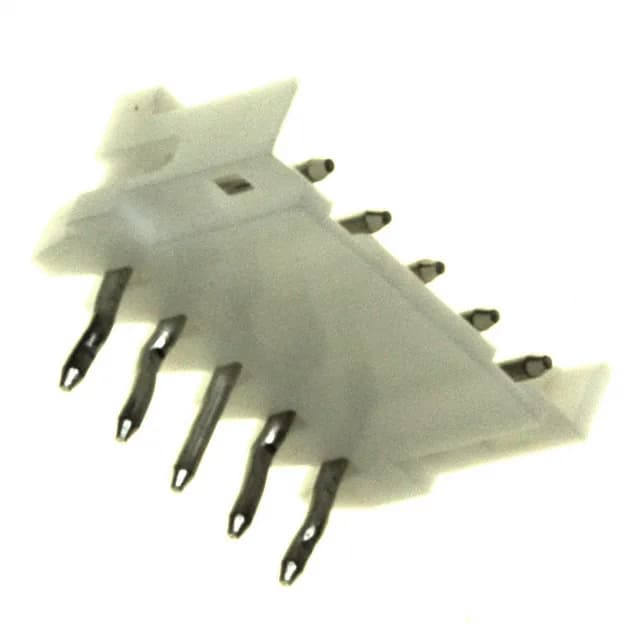

292253-5 TE Connectivity CT Header, 5 Pos, 2mm Pitch, R/A
MPN292253-5
Active
TE Connectivity AMP Connectors CT series, Board to Cable/Wire header, 5 circuits, 2.00mm pitch, right-angle through-hole, shrouded 3-wall, detent lock, tin-plated contacts, UL94 V-0.
$0.5400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCT
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.157\" (4.00mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.177\" (4.50mm) |
Product details
Frequently asked questions
What is the pitch of 292253-5?
The mating pitch is 0.079" (2.00mm), single row, 5 positions loaded.
Does 292253-5 have a locking mechanism?
Yes, a detent lock on the header engages with the mating receptacle for positive retention.
