TE Connectivity 292317-4 USB-B receptacle, USB 2.0, 4 contacts, 1 port, shielded, right-angle through-hole, solder termination, gold contact finish, 1A per contact, 30VAC, 1500 mating cycles, UL94 V-0.
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | USB-B (USB TYPE-B) |
| Voltage - rated | 30VAC |
| Current rating | 1A per Contact |
| Positions | 4 |
| Mounting feature | Horizontal |
| Operating temperature | -55°C ~ 85°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tray |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |

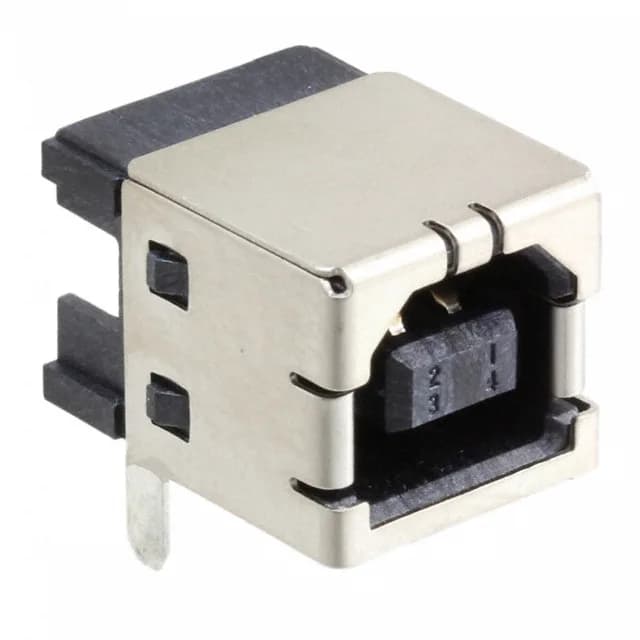

The TE Connectivity 292317-4 is a USB-B (USB TYPE-B) receptacle, the board-mount half of a standard USB 2.0 interconnect.
Mounts horizontally to the PCB via right-angle through-hole solder tails — the standard edge-mount orientation for a USB-B port.
Production status is Active.
Current pricing and lead time are confirmed at quote time — submit an RFQ for your target quantity.
Any standard USB-B receptacle with the same 4-contact layout, shielded shell, right-angle through-hole mounting, and matching board footprint is a functional form-fit alternative. Verify the shell dimensions and solder tail spacing against your PCB layout before substituting.
