TE Connectivity AMP Connectors 293350-1 — Connector Housings

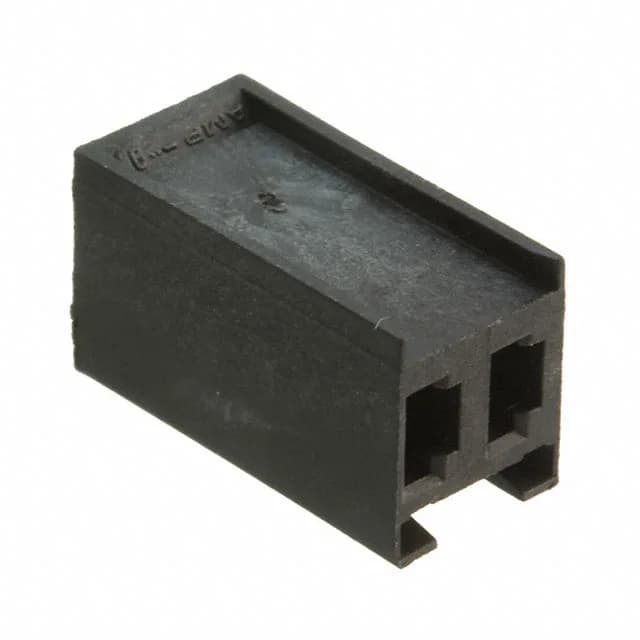

TE Connectivity 293350-1 AMPMODU Mod I Receptacle Housing

MPN293350-1
Active

TE Connectivity AMPMODU Mod I receptacle housing, 293350-1, 2 positions, 1 row, 0.156" (3.96mm) pitch, free hanging (in-line), crimp termination, black PA66 housing, contacts not included.

$0.3400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU Mod I
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

293350-1 specifications
ParameterValue
SeriesAMPMODU Mod I
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
ColorBlack
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
NoteContacts Not Included
Pitch0.156\" (3.96mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions2

Product details

2-Position Receptacle Housing for Field-Built Harnesses

At a 0.156" (3.96mm) pitch, this single-row housing provides more spacing between contacts than typical 2.54mm signal connectors — suited for applications carrying higher current or using larger-gauge wire. The black glass-filled PA66 (Nylon 6/6) housing provides good mechanical strength and a UL94 V-0 flame rating typical for equipment enclosures.

This housing ships without contacts — a key procurement detail. This is standard for field-repairable connector systems where the housing and contacts are sourced independently based on wire gauge and current requirements.

Single-Row, Free-Hanging — Simple Harness Integration

With a single row of 2 positions and free-hanging (in-line) mounting, this receptacle is meant for harness-to-harness or harness-to-board connections where the housing floats in the cable assembly rather than being panel-mounted or PCB-mounted.

Frequently asked questions

Where can I buy 293350-1 and how do I get a price?

The 293350-1 is sourced to order through independent distribution. Submit an RFQ for current pricing and availability — confirmed at quote time. No stock-holding or price is listed here; each quote reflects the market at the time of request.

What contacts are compatible with 293350-1?

The 293350-1 accepts female socket contacts terminated by crimp. The specific AMPMODU Mod I crimp terminal part numbers are not listed in this entry, but the housing is designed for the standard Mod I contact family. Order the contacts separately based on your wire gauge and current requirements.

Is 293350-1 still active and in production?

It is also ROHS3 compliant.
