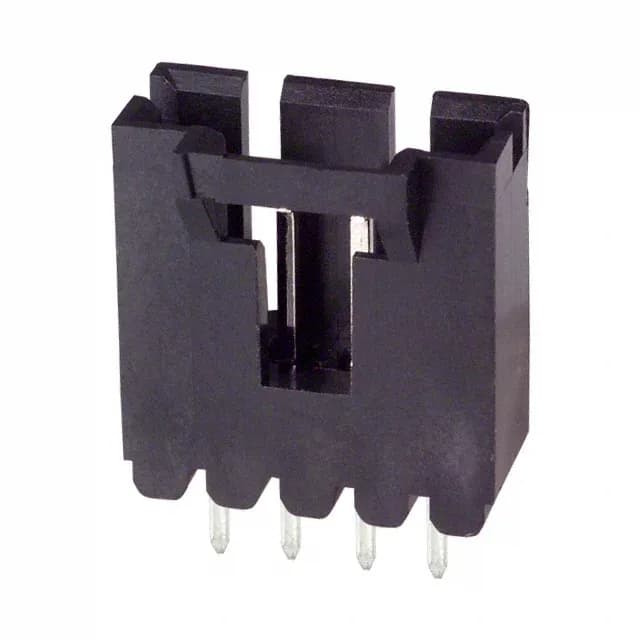

TE Connectivity AMPMODU MTE header, 3-103639-2, 4-position single-row, 0.100" (2.54mm) pitch, shrouded - 4 wall, through-hole solder, latch holder, tin-plated contacts, rated 3A, UL94 V-0, active production.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The keying slot ensures correct orientation and prevents mismating with non-keyed housings. The thermoplastic housing is rated UL94 V-0 for flammability, and the contact finish is 100.0µin (2.54µm) tin on both the mating and post surfaces, offering good corrosion resistance for standard environments.
The mating pitch is 0.100" (2.54mm), which matches standard 2.54mm IDC ribbon cable and many AMPMODU MTE wire-to-board housings.
Yes, it is a shrouded - 4 wall header, meaning the pins are fully surrounded by the insulator on all four sides. This protects the pins and guides the mating connector.
Yes, automotive is one of its listed applications. The latch holder and UL94 V-0 housing support use in vehicle interior environments where vibration and flammability ratings are required.
