Locking and flame rating for enclosed equipment
The 3-103669-0: A latch holder fastening type and 4-wall shrouding with a keying slot protect against mis-mate and vibration back-out inside an enclosure.

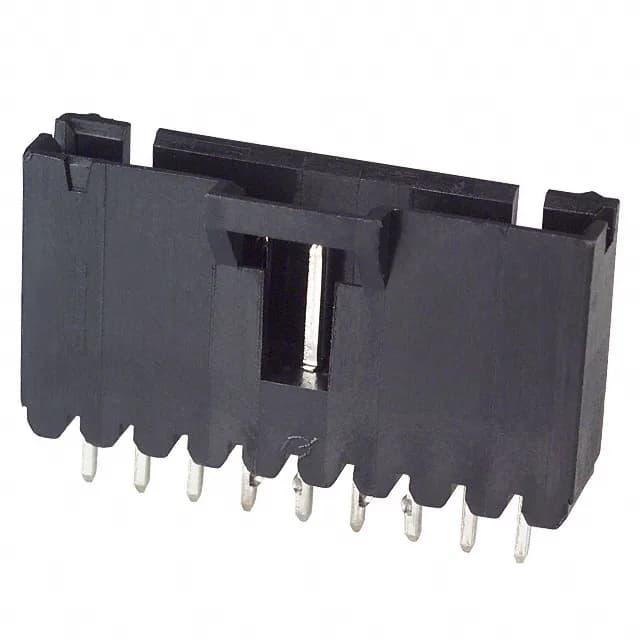

TE AMPMODU MTE 3-103669-0 Header, 9 Pos, 0.100"
MPN3-103669-0
Active
TE Connectivity AMP Connectors AMPMODU MTE header, order code 3-103669-0, 9 positions, single row, 0.100" (2.54 mm) pitch, 3 A, tin-plated mating contacts, through-hole, press-fit and solder termination.
$1.4700Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What is the mating style of the 3-103669-0?
The 3-103669-0 is listed as a Board to Board or Cable style header.
What compliance documentation is available for the 3-103669-0?
RoHS and REACH compliance data is available from TE Connectivity AMP Connectors per the base product number 103669.
