Pitch, Positions, and Footprint

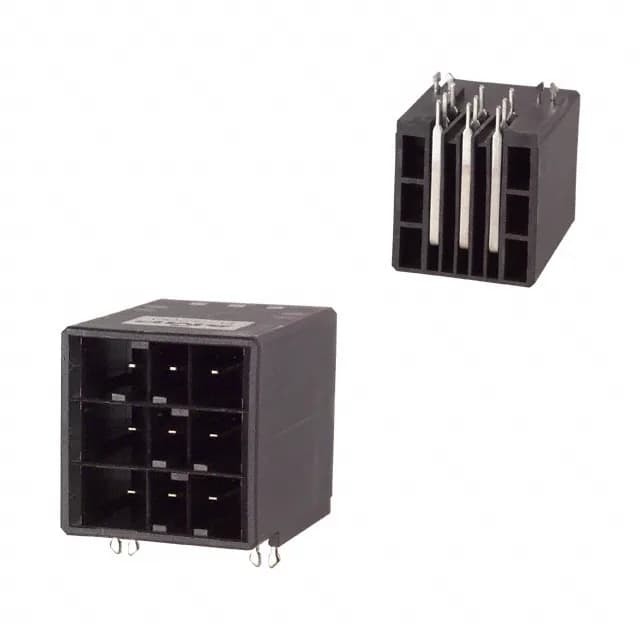

The 3-1123624-5: The 5.08mm pitch and 0.300" row spacing set the PCB footprint for this 9-position, 3-row header. Full 4-wall shrouding protects the tab contacts during mating and prevents stubbing in blind-mate applications. The detent lock provides a tactile engagement that resists moderate vibration.
Current and Voltage Capability
Rated 600V, this header suits industrial control panels and general-purpose equipment where insulation coordination is required. The tin mating finish (78.7µin) provides adequate corrosion resistance for moderate-environment duty cycles. The Dynamic D-3200 series is designed for power and signal distribution in industrial applications. The rectangular tab contacts and copper alloy material support the current rating typical of the series.
Sourced per RFQ.
