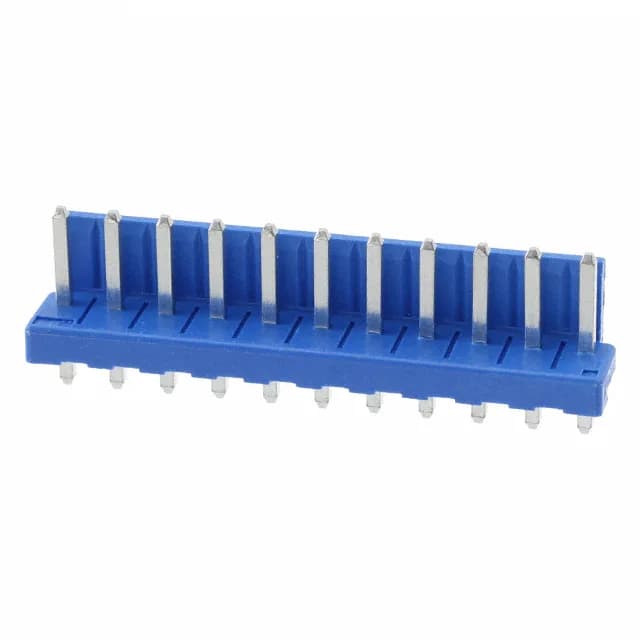

3-1123723-1 - TE Connectivity AMP Connectors
MPN3-1123723-1
Active
$0.3337Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Economy Power |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -25°C~105°C |
| Contact material | Brass |
| Insulation color | Blue |
| Insulation height | 0.118\" (3.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact length - post | 0.146\" (3.70mm) |
| Overall contact length | 0.567\" (14.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.303\" (7.70mm) |
