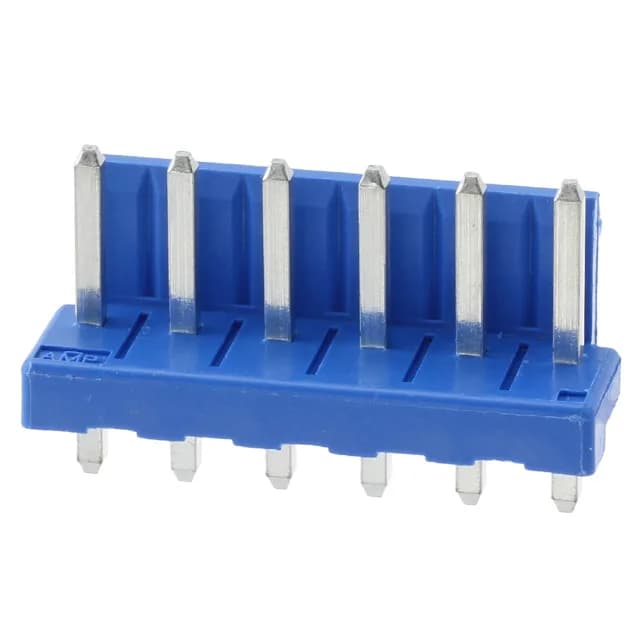

TE Connectivity AMP Connectors Economy Power header, 3-1123723-6, Board to Cable/Wire, 6 circuits, 0.156" (3.96mm) pitch, shrouded-1 wall, friction lock, through-hole solder, tin-plated male pins, 7.5A, 250VAC, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Economy Power |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -25°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Blue |
| Insulation height | 0.118\" (3.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.146\" (3.70mm) |
| Overall contact length | 0.567\" (14.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.303\" (7.70mm) |
The through-hole solder tails and tin-plated contacts keep the BOM cost low for moderate-cycle applications.
The single-row, 6-position layout with 3.96mm pitch is the key footprint match — verify the receptacle part number against your harness design. The shrouded-1 wall provides polarization to prevent mis-mating, but the single wall means the header is less protected than a full-wall shroud — ensure the mating receptacle is properly aligned during assembly.
Yes, it is ROHS3 compliant.
It mates with the corresponding Economy Power receptacle housing and crimp terminals. The mating half must be a 6-position, single-row, 3.96mm pitch receptacle with a friction lock feature.
The pinout is a single row of 6 male pins. The specific circuit assignment depends on your application — the header itself does not impose a pinout beyond the position count.
